GYXTW
时间：2021/11/27
产品详情

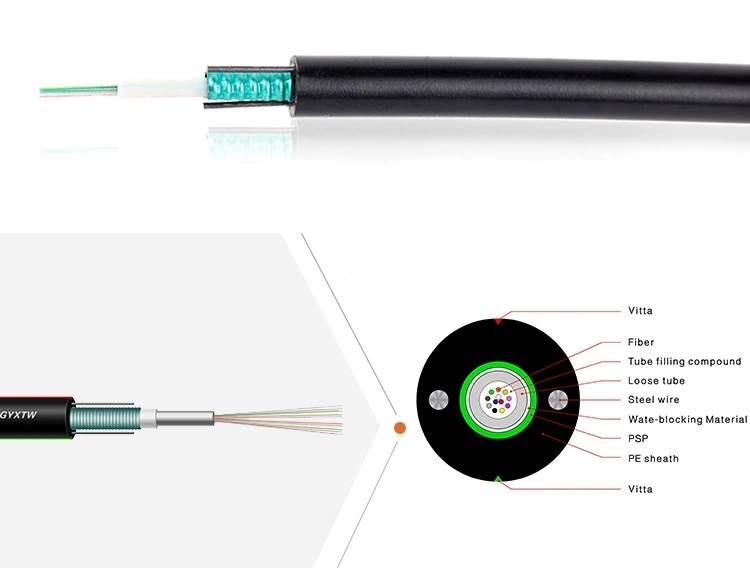

1. Fiber(Fiber characteristic)
Cladding diameter: 125.0±0.1
Fiber characteristics: Diameter: 242±7 um
UV color fiber: Standard chromatogram:
Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Viole
t,Rose/Pink,Aqua
2. Tube filling compound(Gel)
3. PBT loose tube of 2-12 core
Tube thickness: 0.3±0.05mm Diameter: 2.5±0.1 um
4. Phosphoric steel wire Diameter: 0.7mm*2
5. Longitudinal water-proof tape
Thickness *Widen: 0.25*12mm
6. Longitudinal corrugated steel tape laminated with polyethylene
on both sides
Corrugated steel Thickness : 0.4 ±0.015
Steel thickness: 0.15±0.015
7. Black PE out jacket
Diameter: 8.8 ±0.20mm / 8.3 ±0.20mm / 8.0 ±0.20mm
