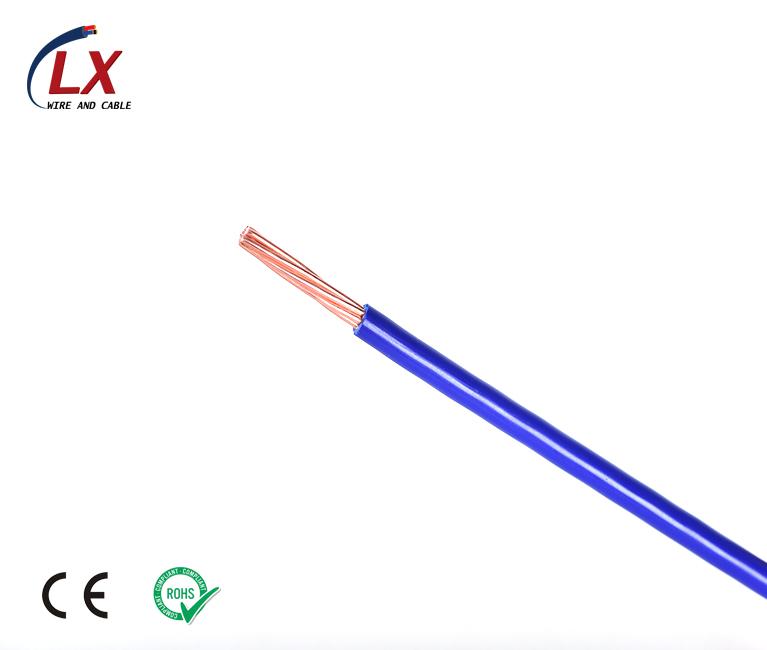

H05V-R/H07V-R
Date：2017/8/17
Standard
IEC 60227 EN50525
Cable Construction
Conductor
Bare copper solid/strands conductor,Strands to IEC Class 2
Insulation
PVC insulation
Technical Characteristics
Working voltage
300/500 volts(H05V-R,H05-K),
450/750 volts(H07V-R)
Test voltage
2000 volts(H05V-R,H05-K), 2500 volts(H07V-R)
Mobile installation bending radius
15 x D
Fixed installation bending radius
15 x D
Mobile installation temperature
-5 oC to +70 oC
Fixed installation temperature
-30 oC to +80 oC
Short circuit temperature
+160 oC
Flame retardant
IEC 60332.1
Insulation resistance
10 MΩ x km
Details
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | |
| # x mm2 | mm | mm | kg/km | kg/km | |
| H05V-R,H05-K | |||||
| 1 x 0.5 | 0.6 | 2.2 | 4.8 | 9 | |
| 1 x 0.75 | 0.6 | 2.4 | 7.2 | 12 | |
| 1 x 1 | 0.6 | 2.6 | 9.6 | 15 | |
| H07V-R | |||||
| 1 x 1.5 | 0.7 | 3 | 14.4 | 23 | |
| 1 x 2.5 | 0.8 | 3.6 | 24 | 35 | |
| 1 x 4 | 0.8 | 4.2 | 39 | 51 | |
| 1 x 6 | 0.8 | 4.7 | 58 | 71 | |
| 1 x 10 | 1 | 6.1 | 96 | 120 | |
| 1 x 16 | 1 | 7.2 | 154 | 170 | |
| 1 x 25 | 1.2 | 8.4 | 240 | 260 | |
| 1 x 35 | 1.2 | 9.5 | 336 | 350 | |
| 1 x 50 | 1.4 | 11.3 | 480 | 480 | |
| 1 x 70 | 1,4 | 12.6 | 672 | 680 | |
| 1 x 95 | 1,6 | 14.7 | 912 | 930 | |
| 1 x 120 | 1,6 | 16.2 | 1152 | 1160 | |
| 1 x 150 | 1,8 | 18.1 | 1440 | 1430 | |
| 1 x 185 | 2,0 | 20.2 | 1776 | 1780 | |
| 1 x 240 | 2,2 | 22.9 | 2304 | 2360 | |
