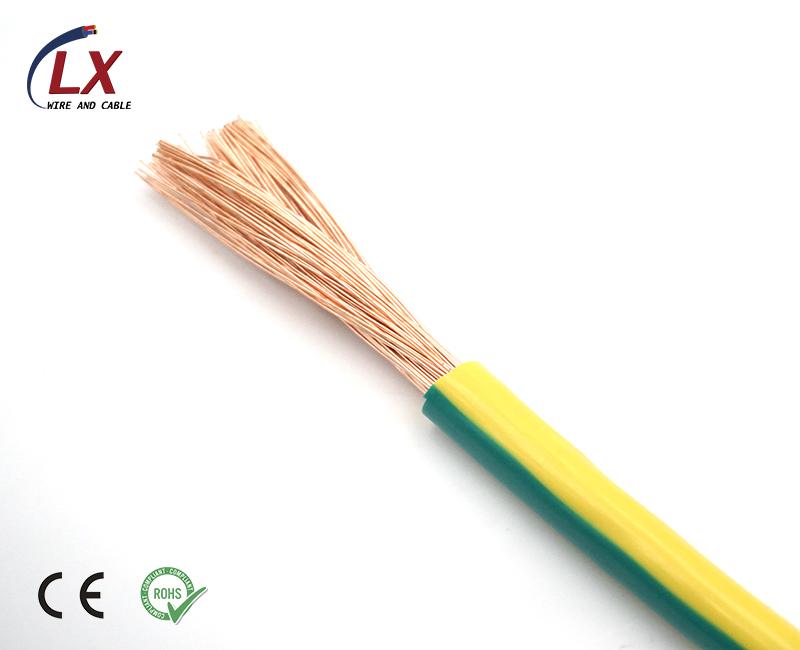

H05V-K/H07V-K
Date：2018/3/15
| Standard | |||||
| IEC 60227 EN50525 | |||||
| Cable Construction | |||||
| Conductor | Bare copper fine wire conductor,Stranded to IEC class 5 . | ||||
| Insulation | PVC insulation | ||||
| Technical Characteristics | |||||
| Working voltage |
300/500v (H05V-K) 450/750v (H07V-K) |
||||
| Test voltage | 2000V(H05V-K)/2500V (H07V-K) | ||||
| Flexing bending radius | 12.5 x D | ||||
| Static bending radius | 12.5 x D | ||||
| Flexing temperature | -5 oC to +70 oC | ||||
| Static temperature | -30 oC to +80 oC | ||||
| Short circuit temperature | +160 oC | ||||
| Flame retardant | IEC 60332.1 | ||||
| Insulation resistance | 10 MΩ x km | ||||
Details
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | |
| # x mm2 | mm | mm | kg/km | kg/km | |
| H05V-K | |||||
| 1 x 0.5 | 0,6 | 2.1 | 4.9 | 10 | |
| 1 x 0.75 | 0,6 | 2.4 | 7.2 | 13 | |
| 1 x 1 | 0,6 | 2.6 | 9.6 | 15 | |
| H07V-K | |||||
| 1 x 1.5 | 0,7 | 3.1 | 14.4 | 20 | |
| 1 x 2.5 | 0,8 | 3.6 | 24 | 31 | |
| 1 x 4 | 0,8 | 4.3 | 38 | 48 | |
| 1 x 6 | 0,8 | 4.9 | 58 | 69 | |
| 1 x 10 | 1,0 | 6.4 | 96 | 121 | |
| 1 x 16 | 1,0 | 8.1 | 154 | 211 | |
| 1 x 25 | 1,2 | 9.8 | 240 | 303 | |
| 1 x 35 | 1,2 | 11.1 | 336 | 417 | |
| 1 x 50 | 1,4 | 13.1 | 480 | 539 | |
| 1 x 70 | 1,4 | 15.5 | 672 | 730 | |
| 1 x 95 | 1,6 | 17.2 | 912 | 900 | |
| 1 x 120 | 1,6 | 19.7 | 1152 | 1135 | |
| 1 x 150 | 1,8 | 21.3 | 1440 | 1410 | |
| 1 x 185 | 2,0 | 23.4 | 1776 | 1845 | |
| 1 x 240 | 2,2 | 27.1 | 2304 | 2270 | |
