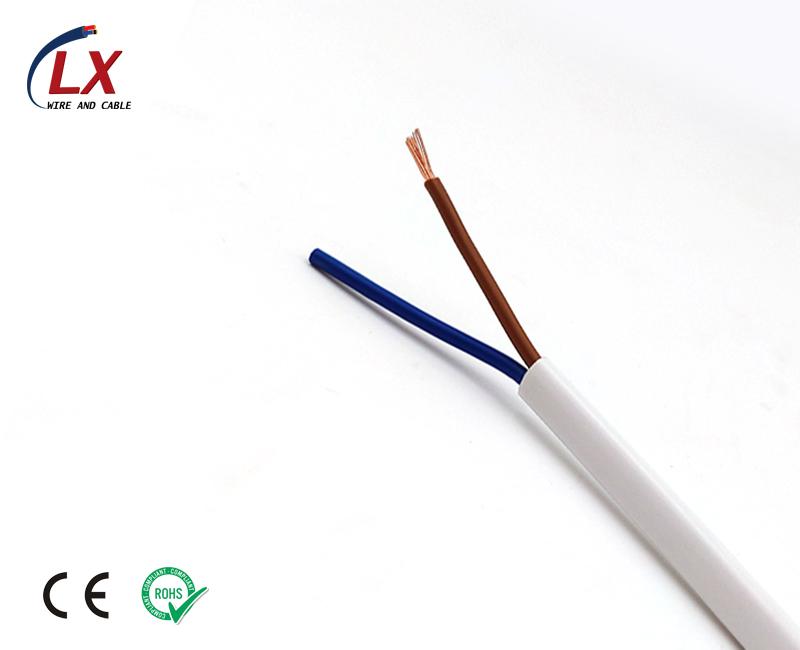

H03V2V2-F/H05V2V2-F H03V2V2H2-F/H05V2V2H2-F

Date：2018/3/16



Standard
IEC 60227 EN50525
Cable Construction
Conductor Bare copper fine wire conductor,Stranded to IEC class 5 .
Insulation PVC  insulation
Jacket PVC  jacket
Technical Characteristics
Working voltage 300/300V(H03V2V2-F/H03V2V2H2-F)
300/500V(H05V2V2-F/H05V2V2H2-F)
Test voltage 3000 volts
Mobile installation bending radius 15 x D
Fixed installation bending radius 4 x D
Mobile installation temperature +5 oC to +90 oC
Fixed installation temperature -40 oC to +90 oC
Short circuit temperature +160 oC
Flame retardant IEC 60332.1
Insulation resistance 20 MΩ x km

Details

 No. of Cores x Nominal  Cross Sectional Area  Nominal Thickness  of Insulation  Nominal Thickness  of Sheath  Nominal Overall  Diameter Nominal Copper  Weight Nominal  Weight
# x mm2 mm mm mm kg/km kg/km
H03V2V2-F
2 x 0.50 0.5 0.6 5 9.6 38
3 x 0.50 0.5 0.6 5.4 14.4 45
4 x 0.50 0.5 0.6 5.8 19.2 55
2 x 0.75 0.5 0.6 5.5 14.4 46
3 x 0.75 0.5 0.6 6 21.6 59
4 x 0.75 0.5 0.6 6.5 28.8 72
H03V2V2H2-F
2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
2 x 0.75 0.5 0.3 3.4 x 5.6 14.4 35
H05V2V2-F
2 x 0.75 0.6 0.8 6.4 14.4 57
3 x 0.75 0.6 0.8 6.8 21.6 68
4 x 0.75 0.6 0.8 7.4 29 84
5 x 0.75 0.6 0.9 8.5 36 106
2 x 1.00 0.6 0.8 6.8 19 65
3 x 1.00 0.6 0.8 7.2 29 79
4 x 1.00 0.6 0.9 8 38 101
5 x 1.00 0.6 0.9 8.8 48 123
2 x 1.50 0.7 0.8 7.6 29 87
3 x 1.50 0.7 0.9 8.2 43 111
4 x 1.50 0.7 1 9.2 58 142
5 x 1.50 0.7 1.1 10.5 72 176
2 x 2.50 0.8 1 9.2 48 134
3 x 2.50 0.8 1.1 10.1 72 169
4 x 2.50 0.8 1.1 11.2 96 211
5 x 2.50 0.8 1.2 12.4 120 262
3 x 4.00 0.8 1.2 11.3 115 233
4 x 4.00 0.8 1.2 12.5 154 292
5 x 4.00 0.8 1.4 13.7 192 369
3 x 6.00 0.8 1.1 13.1 181 328
4 x 6.00 0.8 1.3 13.9 230 490
H05V2V2H2-F
2 x 0.75 0.6 0.8 4.2 x 6.8 14.4 48
2 x 1.00 0.6 0.8 4.4 x 7.2 19.2 57
