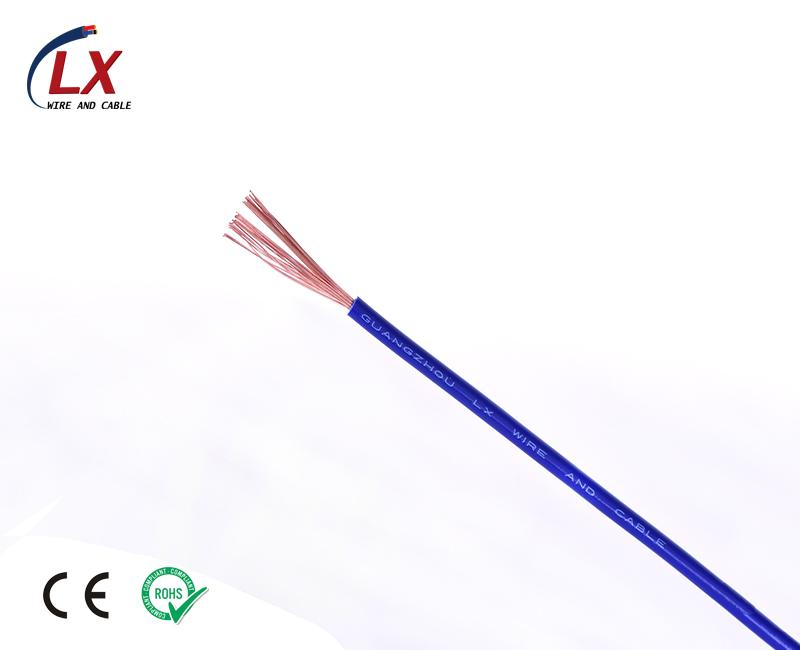

H05V2-K/ H07V2-K
Date：2018/3/16
| Standard | |||||
| IEC 60227 EN50525 | |||||
| Cable Construction | |||||
| Conductor | Bare copper fine wire conductor,Stranded to IEC class 5 . | ||||
| Insulation | PVC insulation | ||||
| Technical Characteristics | |||||
| Working voltage | 300/500v (H05V2-K) 450/750v (H07V2-K) | ||||
| Test voltage | 2500V | ||||
| Mobile installation bending radius | 10-15 x D | ||||
| Fixed installation bending radius | 10-15 x D | ||||
| Fixed installation temperature | -40 oC to +90 oC | ||||
| Short circuit temperature | +160 oC | ||||
| Flame retardant | IEC 60332.1 | ||||
| Insulation resistance | 20 MΩ x km | ||||
Details
| No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | |
| # x mm2 | mm | mm | kg/km | kg/km | |
| 1 x 0.5 | 0.6 | 2.5 | 4.8 | 11 | |
| 1 x 0.75 | 0.6 | 2.7 | 7.2 | 14 | |
| 1 x 1 | 0.6 | 2.9 | 9.6 | 16 | |
| 1 x 1.5 | 0.7 | 3.1 | 14.4 | 20 | |
| 1 x 2.5 | 0.8 | 3.7 | 24 | 32 | |
| 1 x 4 | 0.8 | 4.4 | 38 | 50 | |
| 1 x 6 | 0.8 | 4.9 | 58 | 66 | |
| 1 x 10 | 1 | 6.8 | 96 | 121 | |
| 1 x 16 | 1 | 8.9 | 154 | 211 | |
| 1 x 25 | 1.2 | 10.1 | 240 | 303 | |
| 1 x 35 | 1.2 | 11.4 | 336 | 407 | |
| 1 x 50 | 1.4 | 14.1 | 480 | 600 | |
| 1 x 70 | 1.4 | 15.8 | 672 | 790 | |
| 1 x 95 | 1.6 | 18.1 | 912 | 1067 | |
| 1 x 120 | 1.6 | 19.5 | 1115 | 1277 | |
