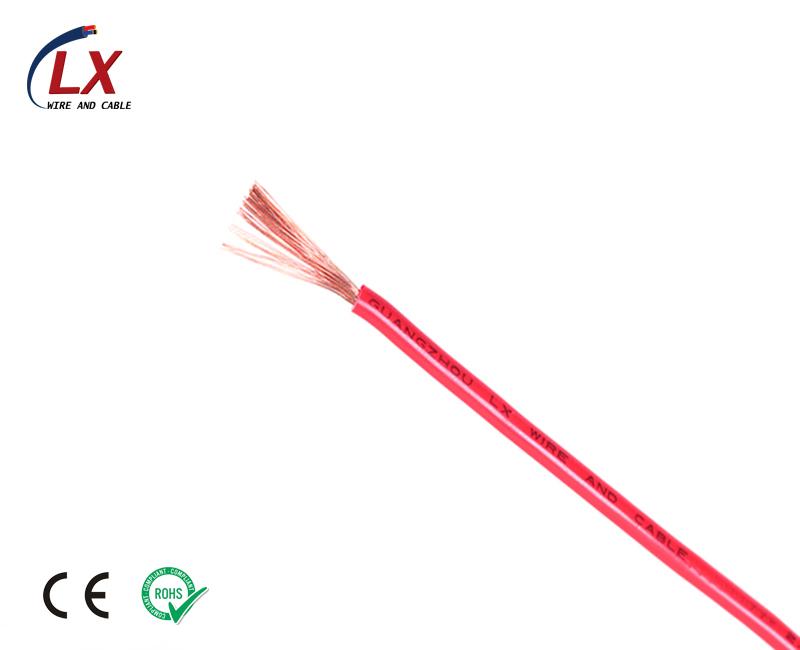

H05Z-K/H07Z-K
Date:2018/3/16
Cable Construction | |||||
Conductor | Fine bare copper strands, Strands to IEC Class-5 | ||||
Insulation | Thermosetting insulation, LSOH - low smoke, zero halogen | ||||
Insulation Colour | |||||
Green/Yellow, Black, Blue, Brown, Red, White, Yellow, Grey, Violet,Grey, Orange, Pink | |||||
Technical Characteristics | |||||
Working voltage | 300/500v (H05Z-K), 450/750v (H07Z-K) | ||||
Test voltage | 2000(H05Z-K) / 2500 (H07Z-K) volts | ||||
Minimum bending radius | |||||
Mobile installation temperature | -15o C to +90o C | ||||
Fixed installation temperature | -40o C to +90o C | ||||
Insulation resistance | 10 MΩ x km | ||||
Flame retardant | IEC 60332.1 | ||||
Flame test | flame-retardant acc. to EN 50265-2-1, IEC 60332.1 | ||||
Smoke density acc. to EN 50268 / IEC 61034 | |||||
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 |
Details
No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | Minimum insulation resistance at 90 °C |
# x mm2 | mm | mm | kg/km | kg/km | MΩ·km |
H05Z-K | |||||
1 x 0.5 | 0.6 | 2.1-2.6 | 4.8 | 9 | 0.013 |
1 x 0.75 | 0.6 | 2.2-2.8 | 7.2 | 12.4 | 0.011 |
1 x 1 | 0.6 | 2.4-2.9 | 9.6 | 15 | 0.01 |
H07Z-K | |||||
1 x 1.5 | 0.7 | 2.8-3.5 | 14.4 | 24 | 0.01 |
1 x 2.5 | 0.8 | 3.4-4.3 | 24 | 35 | 0.009 |
1 x 4 | 0.8 | 3.9-4.9 | 38 | 51 | 0.007 |
1 x 6 | 0.8 | 4.4-5.5 | 58 | 71 | 0.006 |
1 x 10 | 1 | 5.7-7.1 | 96 | 118 | 0.0056 |
1 x 16 | 1 | 6.7-8.4 | 154 | 180 | 0.0046 |
1 x 25 | 1.2 | 8.4-10.6 | 240 | 278 | 0.0044 |
1 x 35 | 1.2 | 9.7-12.1 | 336 | 375 | 0.0038 |
1 x 50 | 1.4 | 11.5-14.4 | 480 | 560 | 0.0037 |
1 x 70 | 1.4 | 13.2-16.6 | 672 | 780 | 0.0032 |
1 x 95 | 1.6 | 15.1-18.8 | 912 | 952 | 0.0032 |
1 x 120 | 1.6 | 16.7-20.9 | 1152 | 1200 | 0.0029 |
1 x 150 | 1.8 | 18.6-23.3 | 1440 | 1505 | 0.0029 |
1 x 185 | 2 | 20.6-25.8 | 1776 | 1845 | 0.0029 |
1 x 240 | 2.2 | 23.5-29.4 | 2304 | 2400 | 0.0028 |
