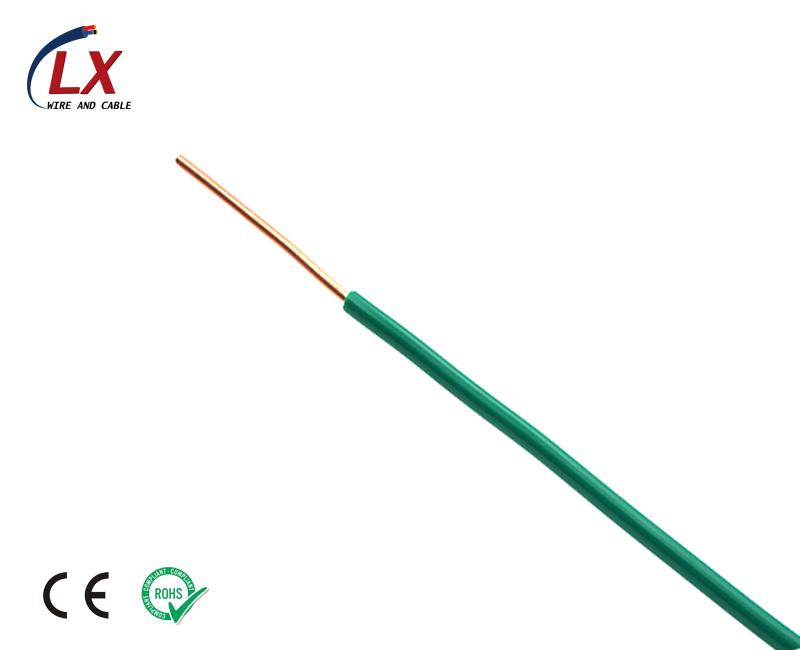

H05Z-U/H07Z-U
Date:2018/3/16
Cable Construction | |||||
Conductor | Solid bare copper, single wire to IEC Class-1 | ||||
Insulation | Cross-link polyolefin insulation, LSOH - low smoke, zero halogen | ||||
Insulation Colour | |||||
Green/Yellow, Black, Blue, Brown, Red, White, Yellow, Grey, Violet | |||||
Technical Characteristics | |||||
Working voltage |
300/500v (H05Z-U), 450/750v (H07Z-U) |
||||
Test voltage | 2000 / 2500 volts | ||||
Mobile installation bending radius | 15 x D | ||||
Fixed installation bending radius | 10 x D | ||||
Mobile installation temperature | +5 oC to +90 oC | ||||
Short circuit temperature | +250 oC | ||||
Insulation resistance | 10 MΩ x km | ||||
Flame retardant | IEC 60332.1 | ||||
Flame test | Smoke density acc. to EN 50268 / IEC 61034 | ||||
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2 | |||||
Flame-retardant acc. to EN 50265-2-1, IEC 60332.1 |
Details
No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | Minimum insulation resistance at 90 °C |
# x mm2 | mm | mm | kg/km | kg/km | MΩ·km |
H05Z-U | |||||
1 x 0.5 | 0.6 | 1.9-2.4 | 4.8 | 8 | 0.015 |
1 x 0.75 | 0.6 | 2.1-2.6 | 7.2 | 12 | 0.012 |
1 x 1 | 0.6 | 2.2-2.8 | 9.6 | 14 | 0.011 |
H07Z-U | |||||
1 x 1.5 | 0.7 | 2.6-3.3 | 14.4 | 20 | 0.011 |
1 x 2.5 | 0.8 | 3.2-4.0 | 24 | 30 | 0.01 |
1 x 4 | 0.8 | 3.6-4.6 | 38 | 45 | 0.0085 |
1 x 6 | 0.8 | 4.1-5.2 | 58 | 65 | 0.007 |
1 x 10 | 1 | 5.3-6.6 | 96 | 105 | 0.007 |
