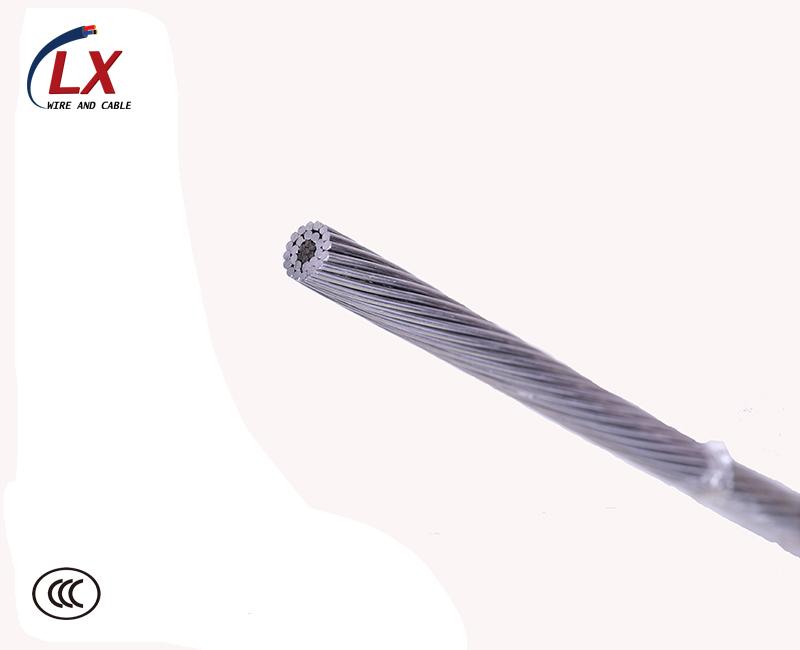

ACSR　Aerial Power Cable

Date：2017/6/24



Construction Aluminum 1350-H19 wires, stranded about a steel core.
Standard ACSR bare conductor meets the following ASTM specifications:
B-230  Aluminum Wire 1350-H19 for Electrical Purposes.
B-232  Concentric-Lay-Stranded Aluminum Conductors, Coated Steel Reinforced (ACSR).
B498 Zinc-Coated (Galvanized) Steel Core Wire for  Aluminum Conductors, Steel Reinforced (ACSR).
B500 Metallic Coated Stranded or Aluminum Cald Stranded Steel Core for Use in Overhead Electrical Conductors.

Details

Specification
Code Name Stranding Structure Stranding and Diameter Approximate Overall Diameter  Weight  Rated tensile Strength  Max. Calculate D.C Resistance at  Current Rating
Aluminum Steel  Total  Aluminum  Steel
(AWG/MCM) (mm2) (mm2) (mm2) (mm) (mm) (mm) (kg/km) (daN) (Ω/km)  (A)
Wren 8 8.34 1.39 9.73 6/1.33 1/1.33 3.99 33.7 308 3.43035 63
Turkey 6 13.29 2.19 15.48 6/1.68 1/1.68 5.04 54 524 2.1586 78
Swan 4 21.16 3.55 24.71 6/2.12 1/2.12 6.36 85 832 1.3557 105
Swan 4 21.16 5.35 26.5 7/1.96 1/2.61 6.53 100 1053 1.3557 104
Swallow 3 26.69 4.45 31.14 6/2.38 1/2.38 7.14 107.9 1021 1.07124 129
Sparrow 2 33.61 5.61 39.22 6/2.67 1/2.67 8.01 136 1270 0.8535 139
Sparate 2 33.61 8.52 42.13 7/2.47 1/3.30 8.24 159 1611 0.8535 138
Robin 1 42.39 7.1 49.49 6/3.00 1/3.00 9 171 1585 0.6767 160
Raven 0 53.48 8.9 62.38 6/3.37 1/3.37 10.11 216 1932 0.5364 183
Quail 2/0 67.42 11.23 78.65 6/3.78 1/3.78 11.34 273 2362 0.4255 210
Pigeon 3/0 85.03 14.19 99.22 6/4.25 1/4.25 12.75 343 2941 0.3373 241
Penguin 4/0 107.23 17.87 125.1 6/4.77 1/4.77 14.31 433 3706 0.2675 276
Waxwing 266.8 135.16 7.48 142.64 18/3.09 1/3.09 15.45 431 3027 0.2133 319
Partridge 266.8 135.16 22 157.16 26/2.57 7/2.00 16.28 546 5029 0.2143 323
Ostrich 300 152 24.71 176.71 26/2.73 7/2.12 17.28 614 5652 0.1906 346
Merlin 336.4 170.45 9.48 179.93 18/3.47 1/3.47 17.35 544 3823 0.1691 386
Linnet 336.4 170.45 27.81 198.26 26/2.89 7/2.25 18.31 689 6271 0.1699 371
Oriole 336.4 170.45 39.81 210.26 30/2.69 7/2.69 18.83 784 7745 0.1704 372
Chickadee 397.5 201.42 11.16 212.58 18/3.77 1/3.77 18.85 642 4399 0.1431 403
Brant 397.5 201.42 26.13 227.55 24/3.27 7/2.18 19.61 762 6469 0.1438 405
Ibis 397.5 201.42 32.77 234.19 26/3.14 7/2.44 19.88 814 7211 0.1438 403
Lark 397.5 201.42 46.97 248.39 30/2.92 7/2.92 20.44 927 8869 0.1442 410
Pelican 477 241.68 13.42 255.1 18/4.12 1/4.14 20.7 771 5216 0.1193 449
Flicker 477 241.68 31.29 272.97 24/3.58 7/2.39 21.49 915 7666 0.1199 454
Hawk 477 241.68 39.42 281.1 26/3.44 7/2.67 21.79 978 8665 0.1199 455
Hen 477 241.68 56.39 298.07 30/3.20 7/3.20 22.4 1112 10534 0.1201 457
Osprey 556.5 282 15.68 297.68 18/4.47 1/4.47 22.35 899 6088 0.1022 492
Parakeet 556.5 282 36.58 318.58 24/3.87 7/2.58 23.22 1067 8822 0.1027 492
Dove 556.5 282 45.94 327.94 26/3.72 7/2.89 23.55 1140 10103 0.1027 499
Eagle 556.5 282 65.81 347.81 30/3.46 7/3.46 24.21 1298 13392 0.103 500
Peacock 605 306.58 39.74 346.32 24/4.03 7/2.69 24.2 1160 9588 0.0945 522
Squab 605 306.58 49.94 356.52 26/3.87 7/3.01 24.51 1240 10841 0.0945 523
Wood duck 605 306.58 71.55 378.13 30/3.16 7/3.61 25.25 1411 12884 0.0947 523
Teal 605 306.58 69.87 376.45 30/3.61 19/2.16 25.24 1399 13359 0.0947 527
Kingbird 636 322.26 17.9 340.16 18/4.78 1/4.78 23.88 1028 6956 0.08945 530
Rook 636 322.26 41.81 364.07 24/4.14 7/2.76 24.84 1219 10083 0.08989 537
Grosbeak 636 322.26 52.45 374.71 26/3.97 7/3.09 25.15 1302 11180 0.08989 538
Scoter 636 322.26 75.22 394.48 30/3.70 7/3.70 25.88 1484 13544 0.09011 541
Egret 636 322.26 73.55 395.81 30/3.70 19/2.22 25.9 1470 14055 0.09011 542
Swift 636 322.26 8.96 331.22 36/3.38 1/3.38 23.62 958 6052 0.08945 545
Flamingo 666.6 337.74 43.81 381.55 24/4.23 7/2.82 25.4 1278 10566 0.08577 552
Gannet 666.6 337.74 55.03 392.77 26/4.07 7/3.16 25.76 1365 11733 0.08577 618
Stilt 715.5 362.58 46.97 409.55 24/4.39 7/2.92 26.31 1372 11335 0.07989 577
Starling 715.5 362.58 59.03 421.61 26/4.21 7/3.28 26.68 1466 12591 0.07989 578
Redwing 715.5 362.58 82.58 445.16 30/3.92 19/2.35 27.43 1653 15394 0.08009 581
Tern 795 402.84 27.87 430.71 45/3.38 7/2.25 27.03 1333 9737 0.07191 610
Condor 795 402.84 52.19 455.03 54/3.08 7/3.08 27.72 1524 12445 0.07191 614
Cuckoo 795 402.84 52.19 455.03 24/4.62 7/3.08 27.74 1522 12394 0.07191 614
Drake 795 402.84 65.51 468.45 26/4.44 7/3.45 28.11 1628 13992 0.07191 614
Coot 795 402.84 11.16 414 36/3.77 1/3.77 26.41 1198 7485 0.07156 614
Mallard 795 402.84 91.87 484.71 30/4.14 19/2.48 28.96 1838 17118 0.07208 618
Ruddy 900 456.06 31.54 487.6 45/3.59 7/2.40 28.73 1510 10931 0.06351 656
Canary 900 456.06 59.1 515.16 54/3.28 7/3.28 29.52 1724 14095 0.06351 660
Rail 954 483.42 33.42 516.84 45/3.70 7/2.47 29.61 1601 11585 0.05992 679
Catbird 954 483.42 13.42 496.84 36/4.14 1/4.14 28.95 1438 8766 0.05962 679
Cardinal 954 483.42 62.65 546.07 54/3.38 7/3.38 30.42 1829 14936 0.05992 681
Ortolan 1033.5 523.68 36.19 559.87 45/3.85 7/2.57 30.81 1734 12310 0.05331 712
Tanager 1033.5 523.68 14.51 538.19 36/4.30 1/4.30 30.12 1556 9493 0.05504 705
Curlew 1033.5 523.68 67.87 591.55 54/3.52 7/3.52 31.68 1981 16180 0.05531 715
Bluejay 1113 563.93 39.03 602.96 45/4.00 7/2.66 31.98 1868 13263 0.05136 743
Finch 1113 563.93 71.55 635.48 54/3.65 19/2.19 32.85 2130 17441 0.05161 746
Bunting 1192.5 604.26 41.55 648.81 48/4.14 7/2.76 33.12 2001 14179 0.04793 772
Grackle 1192.5 604.26 76.58 680.84 54/3.77 19/2.27 33.97 2282 18678 0.04817 773
Bittern 1272 644.51 44.52 689.03 45/4.27 7/2.85 34.17 2134 15148 0.04494 802
Pheasant 1272 644.51 81.63 726.19 54/3.90 19/2.34 35.1 2433 19400 0.04516 807
Skylark 1272 644.51 17.87 662.38 36/4.78 1/4.78 33.42 1917 11585 0.04472 807
Dipper 1351.5 684.84 47.1 731.94 45/4.40 7/2.92 35.16 2266 16070 0.0423 831
Martin 1351.5 684.84 88.71 771.55 54/4.02 19/2.41 36.17 2585 20605 0.0425 835
Bobolink 1431 725.1 50.32 775.42 45/4.53 7/3.02 36.24 2402 17071 0.03994 859
Plover 1431 725.1 91.87 816.97 54/4.14 19/2.48 37.24 2738 21824 0.04013 862
Nuthatch 1510.5 765.35 52.9 818.25 45/4.65 7/3.10 37.2 2534 17789 0.03784 886
Parrot 1510.5 765.35 96.84 862.19 54/4.25 19/2.55 38.25 2890 23020 0.03802 890
Lapwing 1590 805.68 55.48 861.16 45/4.77 7/3.18 38.16 2667 18702 0.03595 911
Falcon 1590 805.68 102.1 907.81 54/4.36 19/2.62 39.26 3042 24255 0.03613 917
Chukar 1780 902.7 73.51 902.72 84/3.70 19/2.22 40.7 3086 22685 0.03245 975
BlueBird 2156 1092 88.8 1092.28 84/4.07 19/2.44 44.76 3733 26830 0.02681 1180
Kiwi 2167 1100 47.5 1099.2 72/4.41 7/2.94 44.07 3427 22160 0.02684 1188
Thrasher 2312 1170.8 65.15 1170.8 76/4.43 19/2.09 45.9 3767 25300 0.02478 1260
Grouse 80 40.52 14.13 54.65 8/2.54 1/4.24 9.32 222 2360 0.7115 155
Petrel 101.8 51.61 30.06 81.67 12/2.34 7/2.34 11.71 378 4715 0.5613 187
Minorca 110.8 56.13 32.77 88.9 12/2.44 7/2.44 12.22 412 5125 0.5161 197
Leghorn 134.6 68.19 39.81 108 12/2.69 7/2.69 13.46 500 6170 0.4248 221
Guinea 159 80.58 46.97 127.55 12/2.92 7/2.92 14.63 590 7255 0.3595 244
Dotterel 176.9 89.48 52.19 141.67 12/3.08 7/3.08 15.42 657 7850 0.3237 260
Dorking 190.8 95.71 56.39 153.1 12/3.20 7/3.20 16.03 709 8480 0.2995 272
Brahma 203.2 102.97 91.87 194.84 16/2.86 19/2.48 18.14 1007 12880 0.2813 288
Cochin 211.3 107.1 62.45 169.55 12/3.37 7/3.37 16.84 765 9390 0.2705 287
