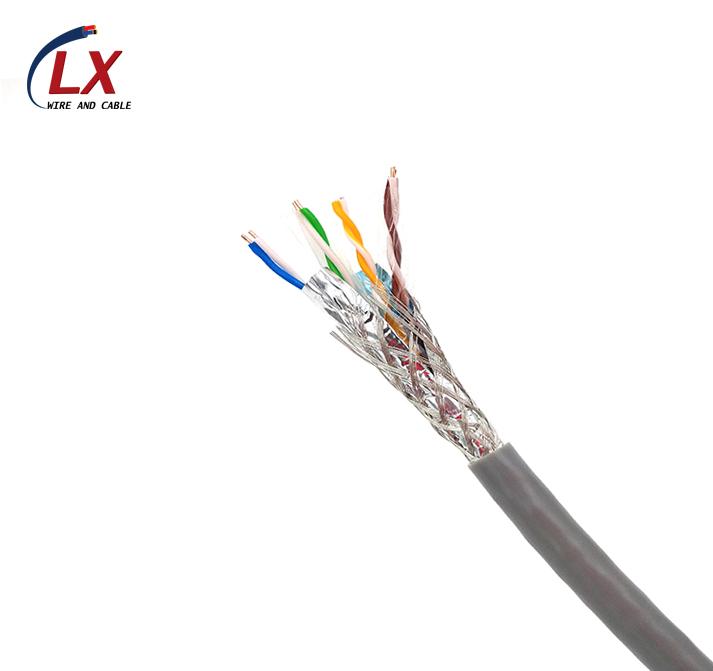

SFTP CAT6 Lan Cable
Date:2018/3/22
Standard and Approval | |||||
YD/T 1019-2013 TIA/EIA-568B & ISO/IEC 11801 | |||||
Cable Construction | |||||
Conductor | Solid plain copper conductor/CCA | ||||
AWG | 23AWG | ||||
ConductorDiameter | 0.57±0.01mm | ||||
Cross | Yes | ||||
Insulation | HDPE insulation | ||||
Insulation color | white/blue,blue;white/green,green;white/orange,orange;white/yellow,yellow | ||||
AVG. thickness | 0.22mm | ||||
Min point thickness | 0.18mm | ||||
Insulation Diameter | 1.1±0.02mm | ||||
Polyester | Yes | ||||
Shield | Aluminum foil | ||||
Braid | 96, 80, 64 or 48 in Al-Mg/CCA/Tinned copper wire | ||||
Drain wire | 0.40Cu/CCA/Tinned copper | ||||
Jacket | PVC outer jacket | ||||
AVG. thickness | 0.55±0.2mm | ||||
Min point thickness | 0.43mm | ||||
Jacket Diameter | 7.2±0.3mm | ||||
Rip cord | optional |
Details
Working voltage | 300/300 volts | ||||
Temperature Range | -30°C~+70°C | ||||
Environmental Standard | RoHS | ||||
Bending Radius | 6xOverall Diameter | ||||
Impedance(ohm) | 100±15 | ||||
Mutural Capacitance | 5.6nF/m Max | ||||
DC Resistance unbalance of a pair: | 5%max | ||||
Capacitance Unbalance(pair to ground):(pf/100m) | ≤330Max | ||||
Conductor DC Resistance at 20 ℃(Ω/Km) | < 72 | ||||
Velocity of propagation | 69% |
