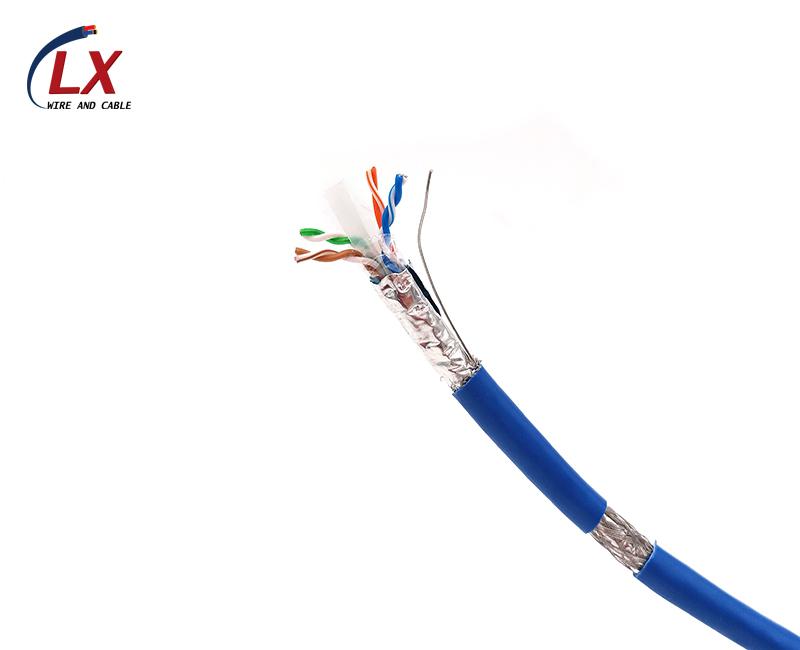

S/FTP CAT6A Lan Cable
Date:2018/3/22
Standard and Approval | |||||
YD/T 1019-2013 TIA/EIA-568C & ISO/IEC 11801, IEC61156-5 | |||||
Cable Construction | |||||
Conductor | Solid plain copper conductor | ||||
AWG | 23AWG | ||||
ConductorDiameter | 0.57±0.01mm | ||||
Cross | Yes | ||||
Insulation | Foamed PE insulation | ||||
Insulation color | white/blue,blue;white/green,green;white/orange,orange;white/yellow,yellow | ||||
AVG. thickness | 0.22mm | ||||
Min point thickness | 0.18mm | ||||
Insulation Diameter | 1.35±0.05mm | ||||
Shield | individual pair with Aluminum foil | ||||
Braid | tinned copper | ||||
Coverage | ≥40% | ||||
Braid Diameter | 0.12mm | ||||
Rip cord | Yes | ||||
Jacket | PVC outer jacket | ||||
AVG. thickness | 0.55±0.1mm | ||||
Min point thickness | 0.43mm | ||||
Jacket Diameter | 8.2±0.3mm |
Details
Working voltage | 300/300 volts | ||||
Temperature Range | -30°C~+70°C | ||||
Environmental Standard | RoHS | ||||
Bending Radius | 8 x cable diameter during installation | ||||
4 x cable diameter during operation | |||||
Impedance | 4-100MHZ | 100±15ohm | |||
100-600MHZ | 100±32ohm | ||||
600-1000MHZ | 100±43ohm | ||||
Mutural Capacitance | 5.6nF/m Max | ||||
DC Resistance unbalance of a pair | ≤2% | ||||
Capacitance Unbalance | ≤160pF/100m | ||||
Conductor DC Resistance at 20 ℃(Ω/Km) | ≤95 ohms/km | ||||
Impendance delay screw | ≤25ns/100m | ||||
Nominal Velocity of propagation | 70% |
