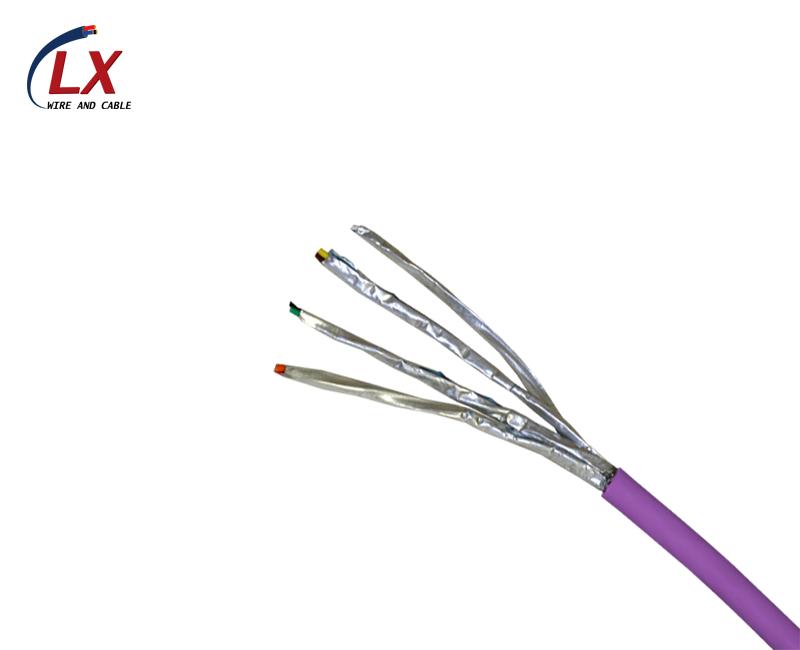

U/FTP CAT6A Lan Cable
Date：2018/3/22
| 工作电压 | 300/300 V | ||||
| 温度范围 | -30°C~+70°C | ||||
| 环保标准 | RoHS | ||||
| 弯曲半径 | 8 x OD（安装时） | ||||
| 4 x OD（工作时） | |||||
| 阻抗 | 4-100MHZ | 100±15ohm | |||
| 100-600MHZ | 100±32ohm | ||||
| 600-1000MHZ | 100±43ohm | ||||
| 互电容 | 5.6nF/m Max | ||||
| 直流电阻不平衡 | ≤2% | ||||
| 电容不平衡 | ≤160pF/100m | ||||
| 20 ℃导体电阻（Ω/Km） | ≤95 ohms/km | ||||
| 回转延迟 | ≤25ns/100m | ||||
| 传输速率 | 70% | ||||
Details
| Working voltage | 300/300 volts | ||||
| Temperature Range | -30°C~+70°C | ||||
| Environmental Standard | RoHS | ||||
| Bending Radius | 8 x cable diameter during installation | ||||
| 4 x cable diameter during operation | |||||
| Impedance | 4-100MHZ | 100±15ohm | |||
| 100-600MHZ | 100±32ohm | ||||
| 600-1000MHZ | 100±43ohm | ||||
| Mutural Capacitance | 5.6nF/m Max | ||||
| DC Resistance unbalance of a pair | ≤2% | ||||
| Capacitance Unbalance | ≤160pF/100m | ||||
| Conductor DC Resistance at 20 ℃（Ω/Km） | ≤95 ohms/km | ||||
| Impendance delay screw | ≤25ns/100m | ||||
| Nominal Velocity of propagation | 70% | ||||
