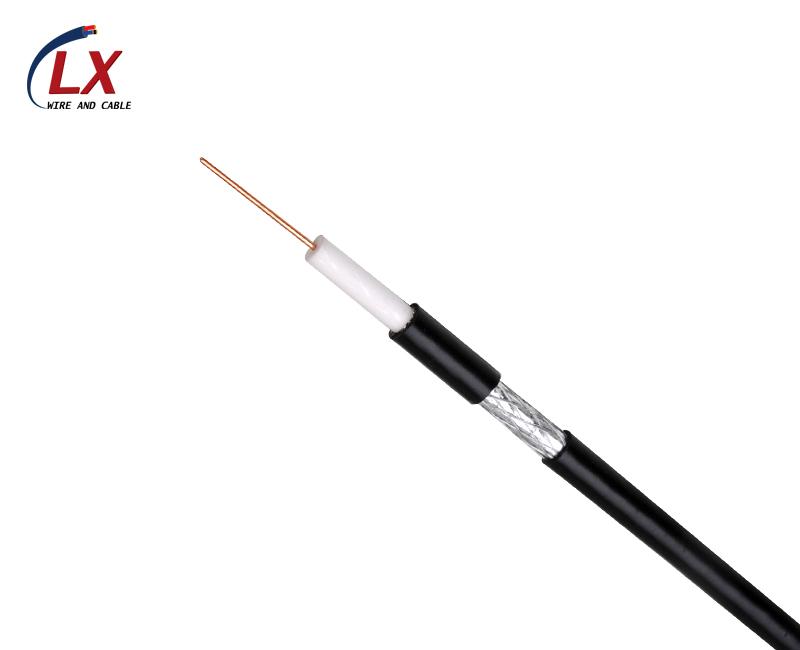

RG59 Coaxial Cable
Date：2018/3/23
| Cable Construction | |||
| Conductor | Solid Bare Copper/copper clad steel | ||
| Conductor Size | 20 AWG (0.81mm) | ||
| Insulation | Foam Polyethylene Dielectric | ||
| Shield | 100% coverage Bonded Aluminum Foil or Aluminum Foil | ||
| Braid | 40~95% Copper/copper clad aluminum/Al-Mg wire | ||
| Braid structure | 0.12mmx(32/48/64/80/96/112/128/144) | ||
| Jacket | PVC/PE | ||
| Overall Cable Diameter | 6.0±0.1mm | ||
Details
| Operating Temperature Range: | -20°C To +60°C | ||
| Minimum bend radius: | 63.5 mm | ||
| Nom. Characteristic Impedance: | 75±3ohm | ||
| Nom. Capacitance Conductor to Shield: | 50pF/m | ||
| Nominal Velocity of Propagation: | 85% | ||
| Nominal Delay: | 1.21ns/ft | ||
| Max. Operating Voltage | 300V | ||
