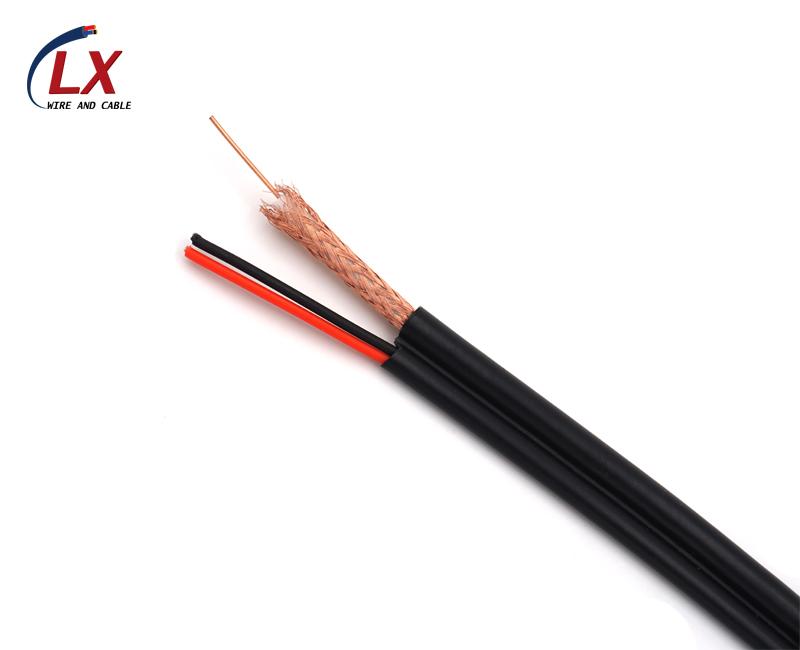

RG59+Power Cable
Date：2018/3/23
| Cable Construction | |||
| Conductor | Solid Bare Copper/copper clad steel | ||
| Conductor Size | 20 AWG (0.81mm) | ||
| Insulation | Foam Polyethylene Dielectric | ||
| Shield | 100% coverage Bonded Aluminum Foil or Aluminum Foil | ||
| Braid | 40~95% Copper/copper clad aluminum | ||
| Braid structure | 0.12mmx(32/48/64/80/96/112/128/144) | ||
| Jacket | PVC/PE | ||
| Overall Cable Diameter | 6.0±0.1mm | ||
| *Power Cable | |||
| Conductor | Stranded Bare Copper/copper clad aluminum | ||
| Core Structure |
2X0.5（16/0.2mm） 2X0.75（24/0.2mm） |
||
| Insulation | PVC | ||
| Jacket | PVC | ||
Details
| Operating Temperature Range: | -20°C To +60°C | ||
| Minimum bend radius: | 63.5 mm | ||
| Nom. Characteristic Impedance: | 75±3ohm | ||
| Nom. Capacitance Conductor to Shield: | 53.4pF/m | ||
| Nominal Velocity of Propagation: | 83% | ||
| Nom. Conductor DC Resistance at 20℃ | 32.81Ω/km | ||
| Max. Operating Voltage | 300V | ||
