AWM 1015
Date：2018/3/21

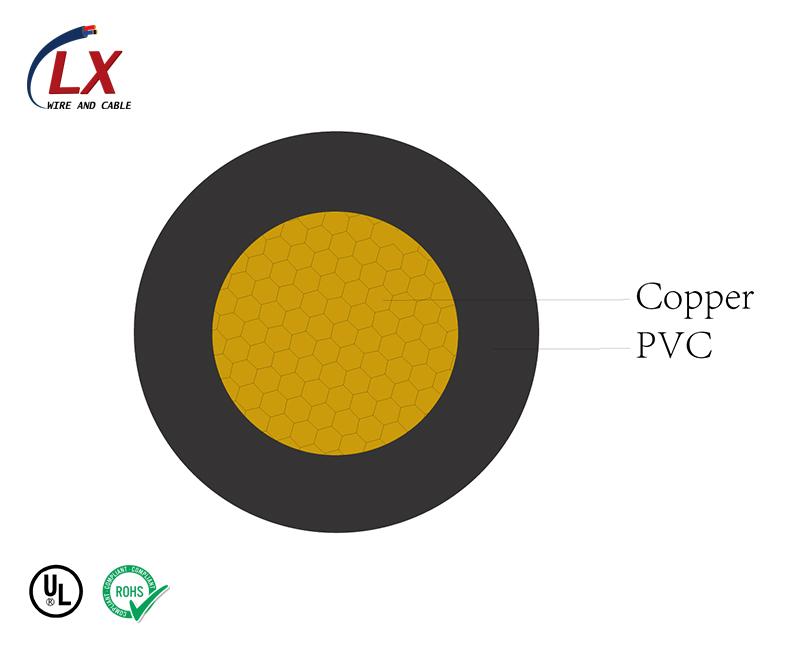

| Construction |
Tinned or bare, stranded or solid copper conductor, 30-16 AWG PVC Jacket |
||||||
| Standard |
UL Subject 758, UL1581 & CSA C22.2 No. 210.2 Passes UL VW-1 & CSA FT1 vertical flame test |
||||||
| Technical Data | Rated Temperature-80℃ | ||||||
| Rated Voltage-300V | |||||||
Details
| Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Thicket Thickness | O.D. | Maximum Resistance at 20℃ | |
| (AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (Ω/km) | ||
| 1015-261 | 26 | 7/0.16 | 0.48 | 0.79 | 2.12 | 139 | |
| 1015-241 | 24 | 11/0.16 | 0.61 | 0.79 | 2.19 | 88.9 | |
| 1015-221 | 22 | 17/0.16 | 0.76 | 0.82 | 2.4 | 57.5 | |
| 1015-201 | 20 | 26/0.16 | 0.94 | 0.82 | 2.58 | 34.6 | |
| 1015-181 | 18 | 16/0.254 | 1.16 | 0.82 | 2.8 | 23.3 | |
| 1015-161 | 16 | 26/0.254 | 1.49 | 0.82 | 3.08 | 15.1 | |
