AWM 1533
Date：2018/3/21

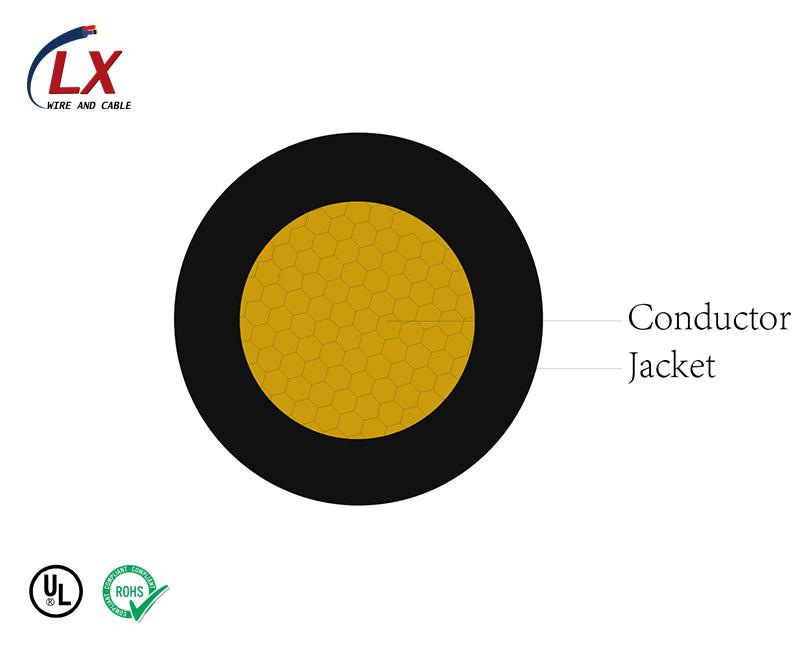

| Construction |
Tinned or bare, stranded or solid copper conductor, 30-16 AWG SR-PVC insulation Tinned or bare copper wire, spiral shield PVC jacket |
||||||
| Standard |
UL Subject 758, UL1581 & CSA C22.2 No.210 Passes UL VW-1 & CSA FT1 vertical flame test |
||||||
| Technical Data | Rated Temperature-80℃ | ||||||
| Rated Voltage-Not Specified | |||||||
Details
| Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Insulation Thickness | Insulation Dia. | Spiral Structure | Jacket Thickness |
| (AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (Num/mm) | (mm) | |
| 1533-301 | 30 | 7/0.10 | 0.3 | 0.26 | 0.82 | 25/0.1 | 0.35 |
| 1533-281 | 28 | 7/0.127 | 0.38 | 0.26 | 0.9 | 29/0.1 | 0.35 |
| 1533-261 | 26 | 7/0.16 | 1 | 30/0.1 | 0.35 | ||
| 1533-241 | 24 | 11/0.16 | 0.61 | 0.26 | 1.13 | 36/0.1 | 0.35 |
| 1533-221 | 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 40/0.1 | 0.35 |
| 1533-201 | 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 46/0.1 | 0.35 |
| 1533-181 | 18 | 41/0.16 | 1.18 | 0.26 | 1.7 | 53/0.1 | 0.35 |
| 1533-161 | 16 | 26/0.254 | 1.49 | 0.26 | 2.02 | 63/0.1 | 0.35 |
