AWM 1571
Date:2018/3/21
Construction |

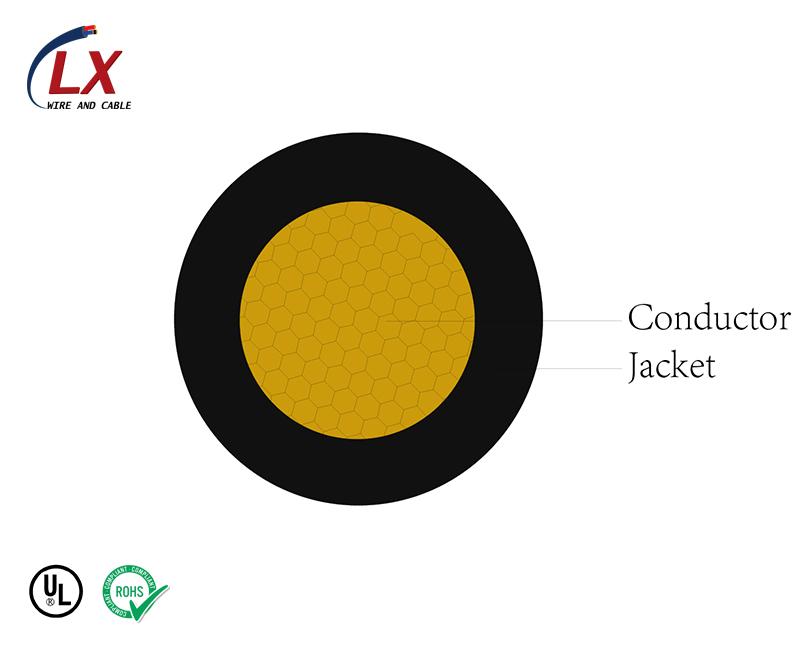

Tinned or bare, stranded or solid copper conductor, 34-16 AWG SR-PVC insulation Tinned or bare copper wire, spiral shield PVC jacket |
||||||
Standard |
UL Subject 758, UL1581 & CSA C22.2 No.210 Passes UL VW-1 & CSA FT1 vertical flame test |
||||||
Technical Data | Rated Temperature-80℃ | ||||||
Rated Voltage-30V |
Details
Specification | |||||||||
Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Insulation Thickness | Insulation Dia. | Spiral Structure | Jacket Thickness | O.D. | Maximum Resistance at 20℃ |
(AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (Num/mm) | (mm) | (mm) | (Ω/km) | |
1571-341 | 34 | 7/0.065 | 0.195 | 0.15 | 0.5 | - | - | - | 908 |
1571-321 | 32 | 7/0.08 | 0.24 | 0.23 | 0.7 | - | - | - | 597 |
1571-301 | 30 | 7/0.10 | 0.3 | 0.3 | 0.9 | 28/0.1 | 0.35 | 1.8 | 354 |
1571-302 | 30 | 7/0.10 | 0.3 | 0.2 | 0.7 | - | - | - | 354 |
1571-281 | 28 | 7/0.127 | 0.38 | 0.26 | 0.9 | 28/0.1 | 0.35 | 1.8 | 223 |
1571-282 | 28 | 7/0.127 | 0.38 | 0.26 | 0.9 | - | - | - | 223 |
1571-221 | 22 | 17/0.16 | 0.76 | 0.32 | 1.4 | 37/0.12 | 0.58 | 2.8 | 57.5 |
1571-222 | 22 | 17/0.16 | 0.76 | 0.25 | 1.25 | - | - | - | 57.5 |
1571-201 | 20 | 26/0.16 | 0.94 | 0.43 | 1.8 | 57/0.1 | 0.56 | 3.1 | 34.6 |
1571-181 | 18 | 65/0.127 | 1.18 | 0.3 | 1.78 | 47/0.12 | 0.59 | 3.2 | 23.3 |
1571-161 | 16 | 54/0.18 | 1.52 | 0.32 | 2.15 | 54/0.12 | 0.61 | 3.6 | 15.1 |
