AWM 2725
Date：2018/3/21

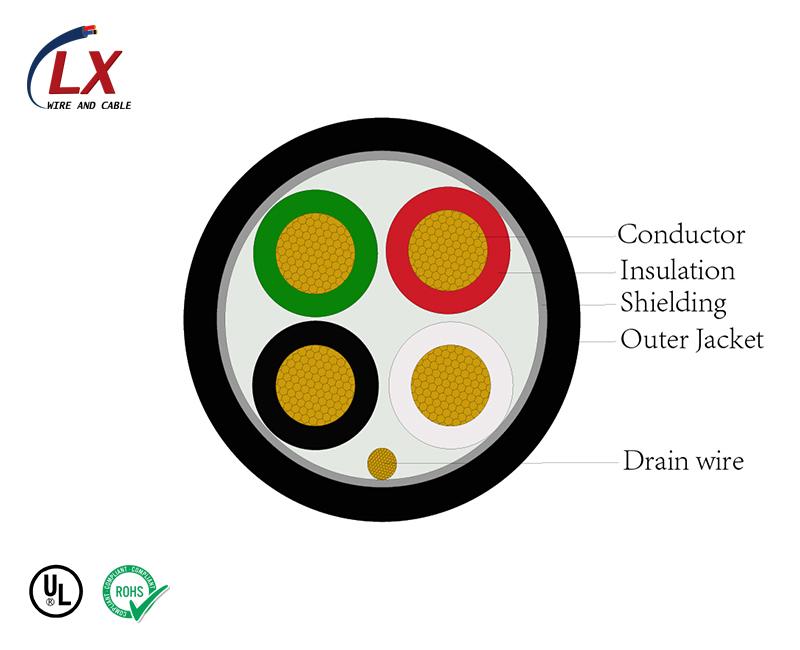

| Construction |
Stranded, tinned or bare copper conductor PVC jacket |
||||||
| Standard |
UL Subject 758 & UL1581 Passes UL VW-1 vertical flame test |
||||||
| Technical Data | Rated Temperature-60℃ or 80℃ | ||||||
| Rated Voltage-30V | |||||||
Details
| Part No. | Core Numbers | Conductor Size | Conduct Construction | Insulation Thickness | Insulation Dia. | Spiral Structure | Jacket Thickness | Maximum Resistance at 20℃ |
| Num | (AWG/MCM) | (Num/mm) | (mm) | (mm) | (Num/mm) | (mm) | (Ω/km) | |
| 2725-301 | 2 | 30 | 7/0.10 | 0.25 | 0.8 | 45/0.10 | 2.7 | 354 |
| 2725-302 | 4 | 30 | 7/0.10 | 0.25 | 0.8 | 59/0.10 | 2.9 | 354 |
| 2725-303 | 8 | 30 | 7/0.10 | 0.13 | 0.56 | 58/0.10 | 3.5 | 354 |
| 2725-281 | 2 | 28 | 19/0.08 | 0.15 | 0.7 | - | 2.2 | 223 |
| 2725-282 | 11 | 28 | 7/0.127 | 0.22 | 0.82 | 16/7/0.12 | 5.2 | 223 |
| 2725-261 | 4 | 26 | 7/0.16 | 0.26 | 1 | 16/5/0.12 | 5 | 139 |
