AWM 1569
Date：2018/3/21
| Construction |

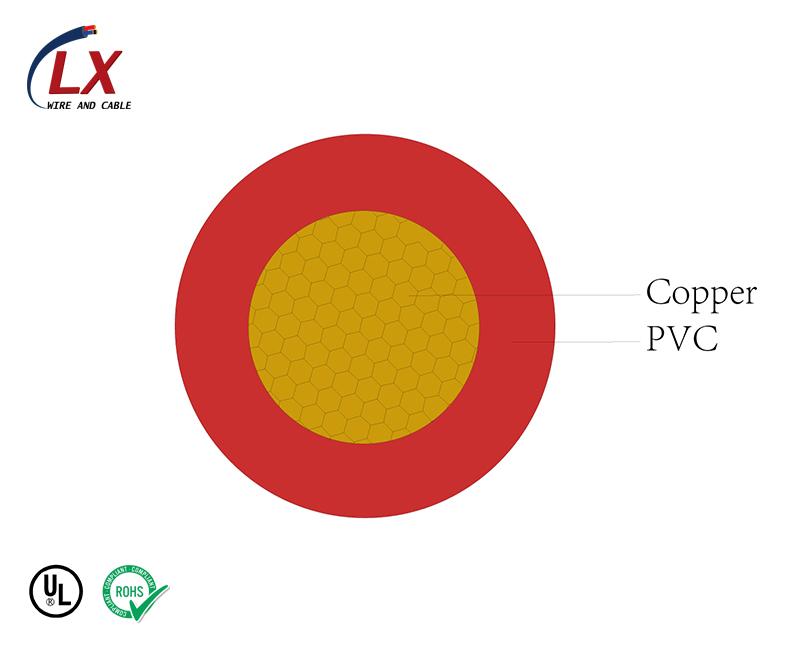

Tinned or bare, stranded or solid copper conductor, 30-10 AWG PVC jacket |
||||||
| Standard |
UL Subject 758, UL1581 & CSA C22.2 No.210 Passes UL VW-1 & CSA FT1 vertical flame test |
||||||
| Technical Data | Rated Temperature-80℃ or 90℃ or 105 ℃ | ||||||
| Rated Voltage-300V | |||||||
Details
| Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Insulation Thickness | O.D. | Maximum Resistance at 20℃ | |||
| (AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (Ω/km) | ||||
| 1569-261 | 26 | 7/0.16 | 0.48 | 0.41 | 1.3 | 139 | |||
| 1569-241 | 24 | 11/0.16 | 0.61 | 0.41 | 1.43 | 88.9 | |||
| 1569-221 | 22 | 17/0.16 | 0.8 | 0.41 | 1.58 | 57.5 | |||
| 1569-201 | 20 | 26/0.16 | 0.94 | 0.41 | 1.78 | 34.6 | |||
| 1569-181 | 18 | 41/0.16 | 1.18 | 0.41 | 2 | 23.3 | |||
