AWM 10368
Date：2018/3/21
| Construction |

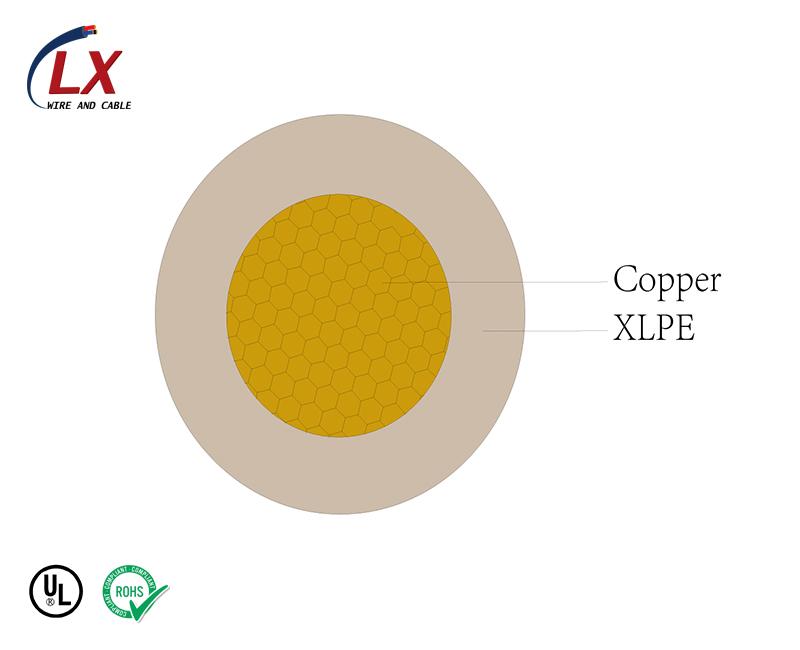

Tinned or bare, stranded or solid copper conductor, 30-10 AWG Crosslinked FRPE Jacket |
||||||
| Standard |
UL Subject 758, UL 1581 & CSA C22.2 No. 210.2, IEC60754-2 Passes CSA FT2 Horizontal flame test |
||||||
| Technical Data | Rated Temperature-105℃ | ||||||
| Rated Voltage-300V | |||||||
Details
| Specification | |||||||||
| Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Insulation Thickness | O.D. | Maximum Resistance at 20℃ | |||
| (AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (Ω/km) | ||||
| 10368-301 | 30 | 7/0.10 | 0.3 | 0.26 | 0.82 | 354 | |||
| 10368-281 | 28 | 7/0.127 | 0.38 | 0.26 | 0.9 | 223 | |||
| 10368-261 | 26 | 7/0.16 | 0.48 | 0.26 | 1 | 139 | |||
| 10368-241 | 24 | 11/0.16 | 0.61 | 0.26 | 1.13 | 88.9 | |||
| 10368-221 | 22 | 17/0.16 | 0.76 | 0.26 | 1.28 | 57.5 | |||
| 10368-201 | 20 | 26/0.16 | 0.94 | 0.26 | 1.46 | 34.6 | |||
| 10368-181 | 18 | 41/0.16 | 1.18 | 0.26 | 1.7 | 23.3 | |||
| 10368-161 | 16 | 26/0.254 | 1.49 | 0.26 | 2.01 | 15.1 | |||
