AWM 10800
Date：2018/3/21
| Construction |

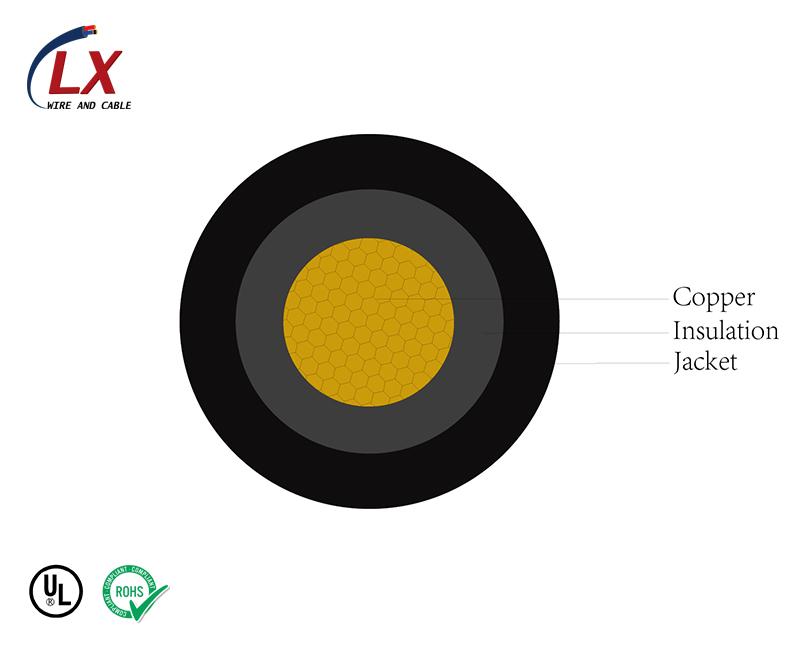

Tinned or bare, stranded or solid copper conductor, 30-16 AWG XLPE Insulation FRPE Jacket |
||||||
| Standard |
UL Subject 758, UL 1581 & CSA C22.2 No. 210.2, IEC60754-2 Passes CSA FT2 Horizontal flame test |
||||||
| Technical Data | Rated Temperature-80℃ | ||||||
| Rated Voltage-300V | |||||||
Details
| Part No. | Conductor Size | Conduct Construction | Conductor Dia. | Insulation Thickness | Jacket Thickness | O.D. | Maximum Resistance at 20℃ | ||
| (AWG/MCM) | (Num/mm) | (mm) | (mm) | (mm) | (mm) | (Ω/km) | |||
| 10800-301 | 30 | 7/0.10 | 0.3 | 0.3 | 0.42 | 1.74 | 354 | ||
| 10800-281 | 28 | 7/0.127 | 0.38 | 0.3 | 0.42 | 1.82 | 223 | ||
| 10800-261 | 26 | 7/0.16 | 0.48 | 0.3 | 0.42 | 1.92 | 139 | ||
| 10800-241 | 24 | 11/0.16 | 0.61 | 0.3 | 0.42 | 2.05 | 88.9 | ||
| 10800-221 | 22 | 17/0.16 | 0.76 | 0.3 | 0.42 | 2.2 | 57.5 | ||
| 10800-201 | 20 | 26/0.16 | 0.94 | 0.3 | 0.42 | 2.38 | 34.6 | ||
| 10800-181 | 18 | 41/0.16 | 1.18 | 0.3 | 0.42 | 2.62 | 23.3 | ||
| 10800-161 | 16 | 26/0.254 | 1.49 | 0.3 | 0.42 | 2.93 | 15.1 | ||
