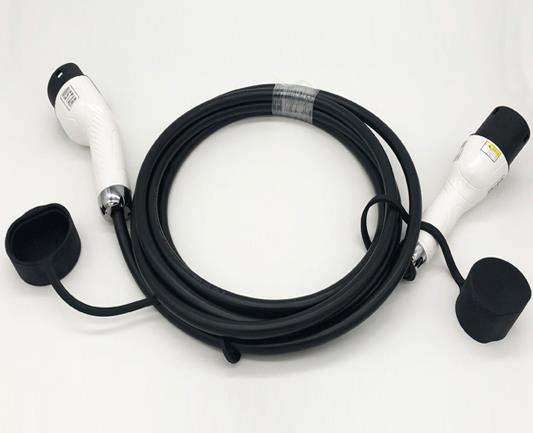

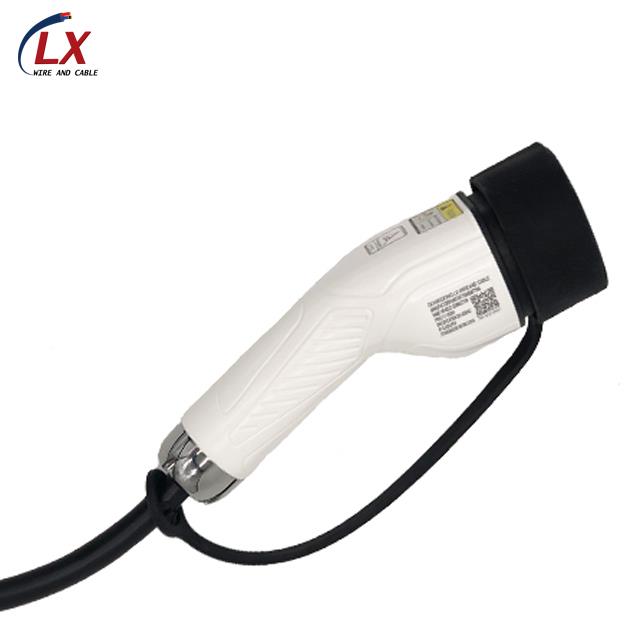

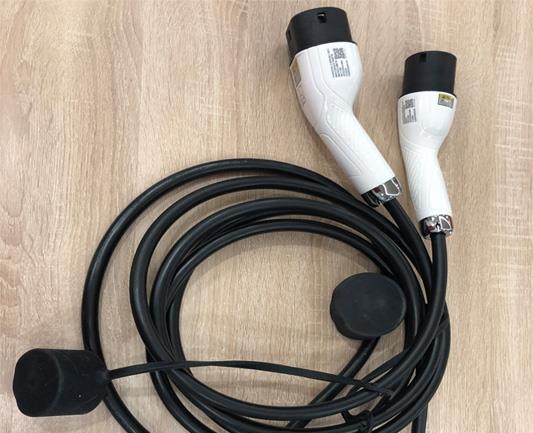

EV Cable
Date：2021/8/6
Charging Mode: AC Standard Mode 3
Plug Type: IEC 62196-2 Type 2
Waterproof Grade: IP67
Dustproof: YES
Ampacity: 16/32A High Ampacity
Flame Rating : UL94-V0
Mating Cycles: >10000 times
Temperature range: -40-105℃ wide
Details
Features
1. Meets 62196-2
IEC 2010 standards
2. beautiful
shape and support before and after the installation mode
3. pin head
safety insulation design, to prevent the direct contact of manpower accident
4. Integrated structure, IP67 waterproof, highest standard above 90%
products in the market
5. Reliability
material, flame retardant, environmental protection, wear resistance, weatherability,
impact resistance, high resistance to oil, anti-UV
Electrical
performance
1. Rated
operating current: 16A/32A
2. Working
Voltage: 250V AC
3. Insulation
resistance:> 1000MΩ (DC500V)
4. Terminal
temperature rise: <50K
5. Withstand
voltage: 2000V
6. Contact
resistance: 0.5mΩ Max
Mechanical
behavior
1. Mechanical
life: no load-swappable> 10000
2. Coupled
Insertion Force: 45N <F <80N
Material
application
1. Case
Material: thermoplastic flammability rating UL94V-0
2. Pin: copper
alloy, the surface of the silver-plated + top of thermoplastics
3. seals: rubber
or silicone
4. Working
environment temperature: -30℃ ~~ +50℃
5. Contact

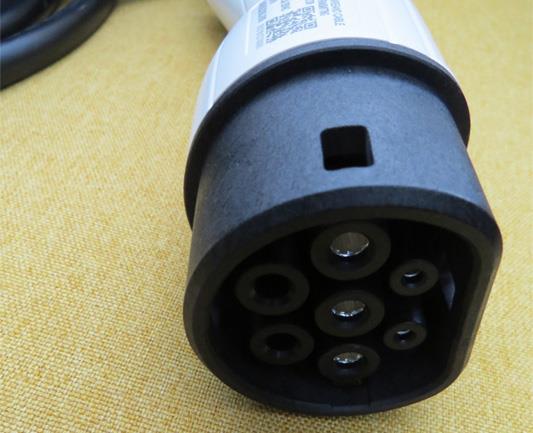

parameters and functions defined
|
Number / mark |
Functional definition |
|
1-（L1） |
AC power |
|
2-（L2） |
AC power(for 3-Phase) |
|
3- (L3) |
AC power(for 3-Phase) |
|
4-(N) |
Neutral |
|
5-(PE) |
Powered equipment ground / vehicle chassis ground |
|
6-(CP) |
Control confirmation |
|
7-(PP) |
Connection confirmation |
|
Model |
Contact No |
Wiring specifications |
Remark |
|
LXNIIEC2S1/3-EV16S |
5(1-Phase) 7(3-Phase) |

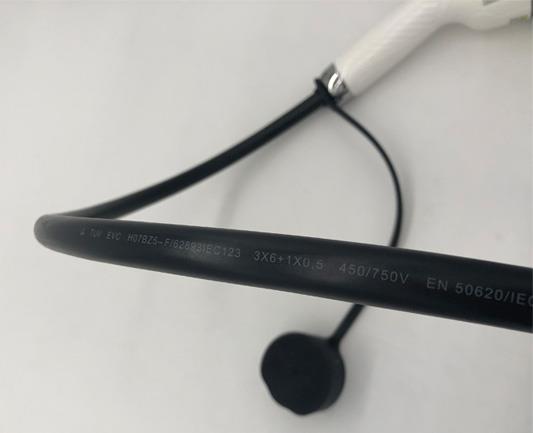

3*2.5mm2+1*0.5mm2(1-Phase) 5*2.5mm2+1*0.5mm2(3-Phase) |
Cable length is configured |
|
LXNIIEC2F1/3-EV32S |
5(1-Phase) 7(3-Phase) |
3*6mm2+1*0.5mm2(1-Phase) 5*6mm2+1*0.5mm2(3-Phase) |

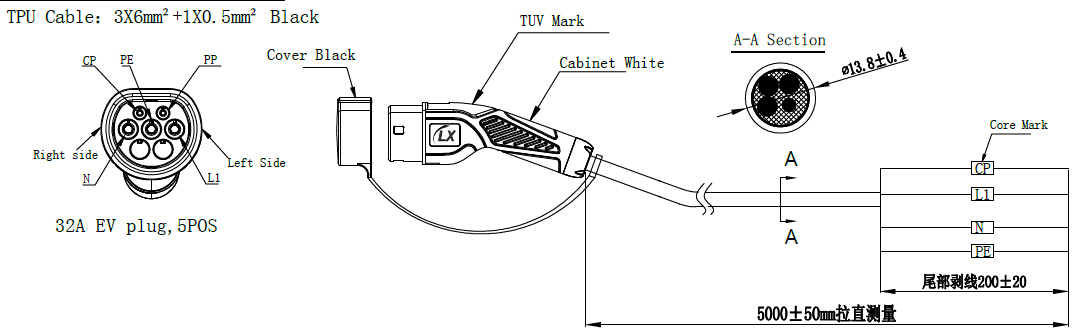

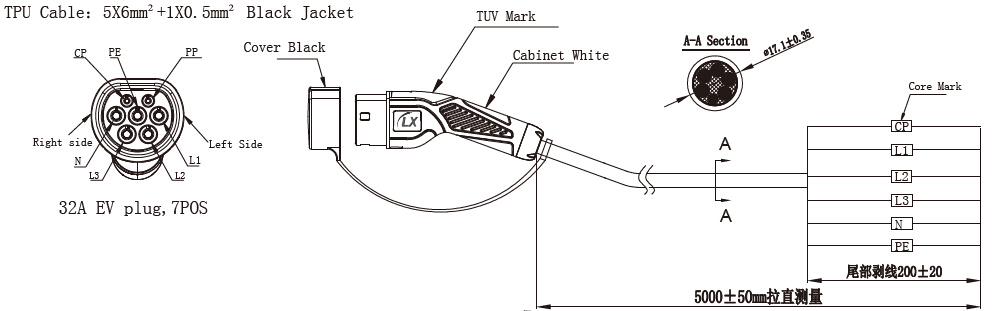

Drawing
