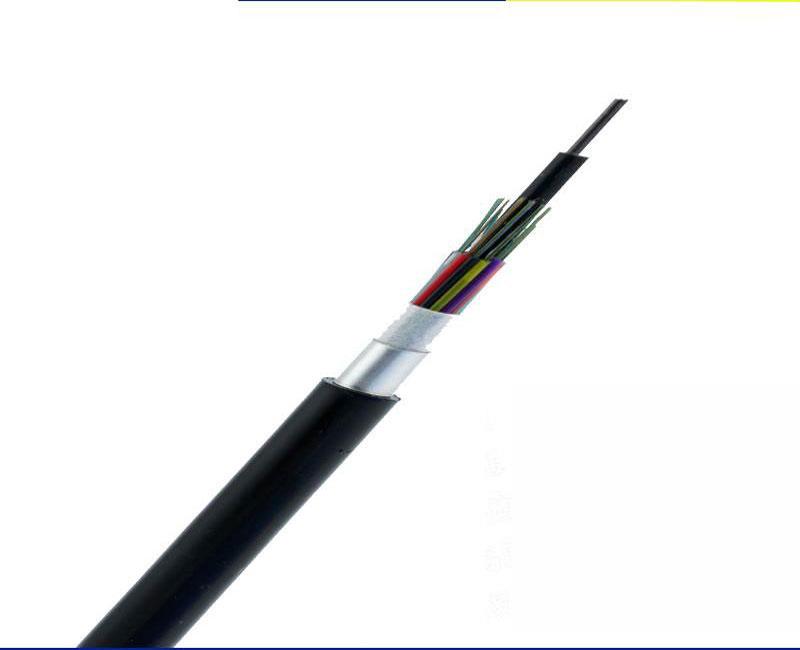

Communication Cable GYTA Optic Fiber Cable

Date：2021/12/23




1. Fiber(Fiber characteristic)
Cladding diameter: 125.0±0.1
Fiber characteristics: Diameter: 242±7 um
UV color fiber: Standard chromatogram:
Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua
2. Tube filling compound(Gel)
3. PBT loose tube of 2-12 core
Tube thickness: 0.3±0.05mm Diameter: 2.5±0.1 um
4. Central Strength Member: steel wire Diameter: 1.6mm
5. Cable filling compound
6. APL :Aluminum Polyethylene Laminate moisture barrier
7. Black PE out jacket
Jacket thickness:1.8 ±0.20mm
Diameter: 9.5 ±0.20mm



Details

Application
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aerial
