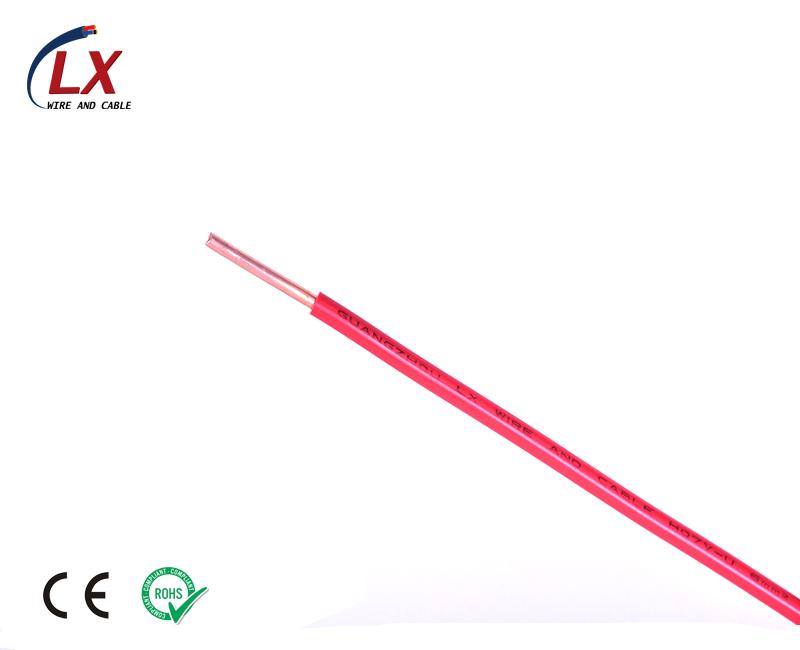

H05V-U / H07V-U
- Product Describe
- Product Detail
-
Standard IEC 60227 EN50525 Cable Construction Conductor Solid bare copper single wire,Solid to IEC class-1 Insulation PVC insulation Technical Characteristics Working voltage 300/500v (H05V-U)
450/750v (H07V-U)Test voltage 2000V(H05V-U)/2500V (H07V-U) Mobile installation bending radius 15 x D Fixed installation bending radius 15 x D Mobile installation temperature -5 oC to +70 oC Fixed installation temperature -30 oC to +90 oC Short circuit temperature +160 oC Flame retardant IEC 60332.1 Insulation resistance 10 MΩ x km
-
Cable Parameter No. of Cores x
Nominal Cross Sectional Area
Nominal Thickness
of Insulation
Nominal
Overall Diameter
Nominal
Copper Weight
Nominal Weight # x mm2 mm mm kg/km kg/km 1 x 0.5 0.6 2.1 4.8 9 1 x 0.75 0.6 2.2 7.2 11 1 x 1 0.6 2.4 9.6 14 1 x 1.5 0.7 2.9 14.4 21 1 x 2.5 0.8 3.5 24 33 1 x 4 0.8 3.9 38 49 1 x 6 0.8 4.5 58 69 1 x 10 1 5.7 96 115
