AWM 2517

  • Product Describe
  • Product Detail

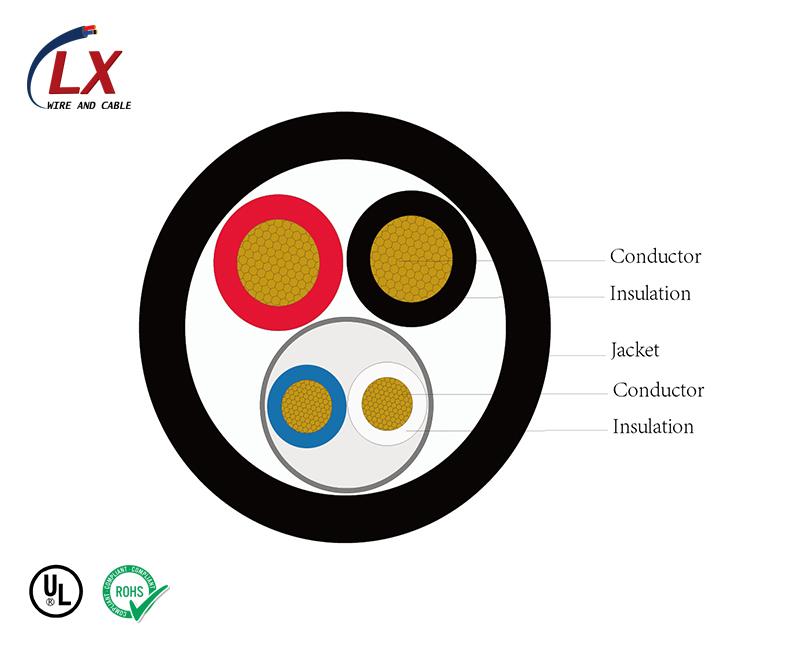

  • Construction Stranded, bare or tinned copper conductor
    PVC insulation
    Cores cabled under aluminum mylar shield
    Tinned or bare copper wire braid shield
    PVC jacket
    Standard UL Subject 758, UL 1581 & CSA C22.2 No.210.2
    Passes UL VW-1 & CSA FT1 vertical flame test
    Technical Data Rated Temperature-105℃
    Rated Voltage-300V
  • Part No. Core Numbers Conductor Size Conduct Construction Insulation Thickness Insulation Dia. Spiral Structure Jacket Thickness Maximum Resistance at 20℃
    Num (AWG/MCM) (Num/mm) (mm) (mm) (Num/mm) (mm) (Ω/km)
    2517-281 3 28 7/0.127 0.41 1.2 16/4/0.10 4.2 223
    2517-282 4 28 7/0.127 0.41 1.2 16/4/0.12 4.7 223
    2517-283 5 28 7/0.127 0.41 1.2 16/4/0.12 5 223
    2517-284 6 28 7/0.127 0.41 1.2 16/5/0.12 5.3 223
    2517-285 8 28 7/0.127 0.41 1.2 16/7/0.10 5.8 223
    2517-286 12 28 7/0.16 0.41 1.3 16/7/0.12 7.1 223
    2517-287 18 28 7/0.127 0.41 1.2 16/7/0.12 7.8 223
    2517-261 9 26 7/0.16 0.41 1.3 16/6/0.12 6.4 139
    2517-262 11 26 7/0.16 0.41 1.3 16/8/0.12 6.9 139
