AWM 2547

  • Product Describe
  • Product Detail

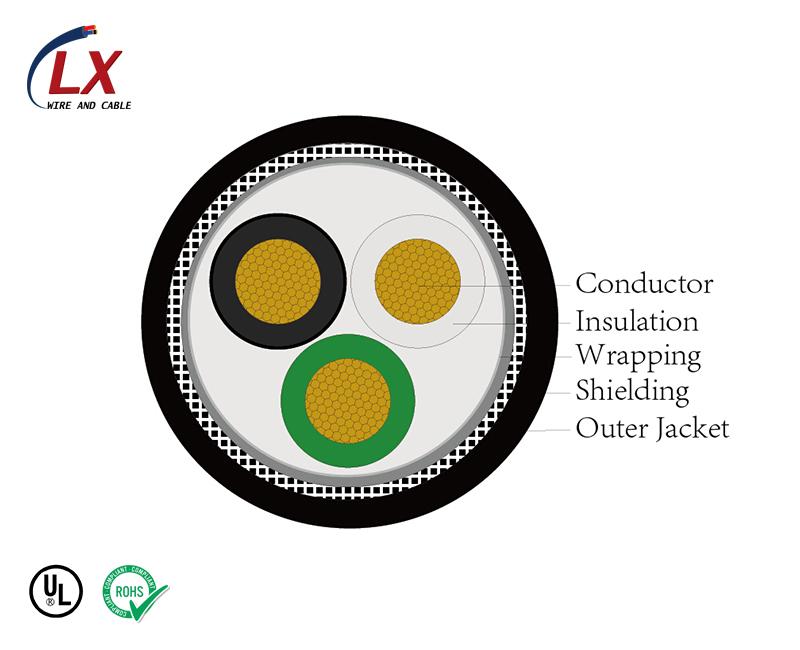

  • Construction Stranded, tinned or bare copper conductor, 30-16 AWG minimum
    SR-PVC insulation
    Two to three cores
    Tinned or bare copper wire spiral shield
    PVC jacket
    Standard UL Subject 758, UL1581 & CSA C22.2 No.210.2
    Passes UL VW-1 & CSA FT1 vertical flame test
    Technical Data Rated Temperature-80℃
    Rated Voltage-Not Specified
  • Part No. Core Numbers Conductor Size Conduct Construction Insulation Thickness Insulation Dia. Spiral Structure Jacket Thickness Maximum Resistance at 20℃
    Num (AWG/MCM) (Num/mm) (mm) (mm) (Num/mm) (mm) (Ω/km)
    2547-301 2 30 7/0.10 0.26 0.82 44/0.1 2.64 354
    2547-302 3 30 7/0.10 0.26 0.82 49/0.1 2.77 354
    2547-281 2 28 7/0.127 0.26 0.9 46/0.1 2.8 223
    2547-282 3 28 7/0.127 0.26 0.9 53/0.1 2.94 223
    2547-261 2 26 7/0.16 0.26 1 54/0.1 3 139
    2547-262 3 26 7/0.16 0.26 1 1 2.9 139
    2547-241 2 24 11/0.16 0.26 1.13 62/0.1 3.26 88.9
    2547-242 3 24 11/0.16 0.26 1.13 69/0.1 3.43 88.9
    2547-221 2 22 17/0.16 0.26 1.28 60/0.12 3.6 57.5
    2547-222 3 22 17/0.16 0.26 1.28 72/0.12 3.76 57.5
