AWM 2562

  • Product Describe
  • Product Detail

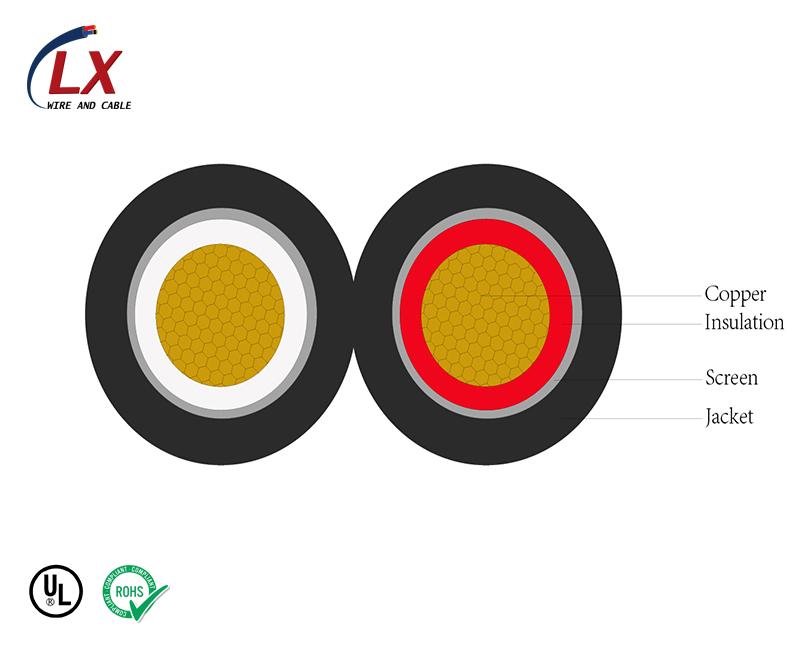

  • Construction Stranded, tinned or bare copper conductor, 30-16 AWG
    PVC insulation
    Multiple cores (Flat or Round)
    Tinned or bare copper wire, spiral or braid shield
    PVC jacket
    Standard UL Subject 758, UL 1581 & CSA C22.2 No.210.2
    Passes UL VW-1 & CSA FT1 vertical flame test
    Technical Data Rated Temperature-80℃
    Rated Voltage-300V
  • Part No. Core Numbers Conductor Size Conduct Construction Insulation Thickness Insulation Dia. Spiral Structure Jacket Thickness Maximum Resistance at 20℃
    Num (AWG/MCM) (Num/mm) (mm) (mm) (Num/mm) (mm) (Ω/km)
    2562-261 2 26 30/0.08 0.45 1.5 46/0.10 2.80X5.60 124
    2562-281 3 28 7/0.127 0.56 1.5 39/0.12 2.70X8.40 223
    2562-262 3 26 30/0.08 0.45 1.5 46/0.10 2.80X8.40 124
