AWM 1007

  • Product Describe
  • Product Detail

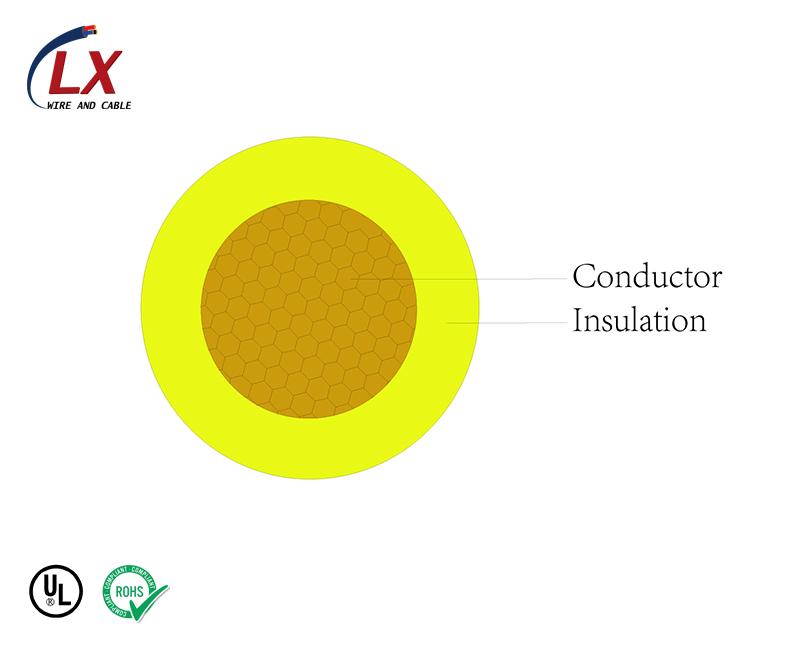

  • Construction Tinned or bare, stranded or solid copper conductor, 32-16 AWG
    PVC Jacket
    Standard UL Subject 758, UL1581 & CSA C22.2 No.210
    Passes UL VW-1 & CSA FT1 vertical flame test
    Technical Data Rated Temperature-80℃
    Rated Voltage-300V
  • Specification
    Part No. Conductor Size Conduct Construction Conductor Dia.  Thicket Thickness O.D. Maximum Resistance at 20℃
    (AWG/MCM) (Num/mm) (mm) (mm) (mm) (Ω/km)
    1007-301 30 7/0.10 0.3 0.41 1.12 354
    1007-281 28 7/0.127 0.38 0.41 1.2 223
    1007-261 26 7/0.16 0.48 0.41 1.3 139
    1007-241 24 11/0.16 0.61 0.41 1.43 88.9
    1007-221 22 17/0.16 0.76 0.41 1.58 57.5
    1007-201 20 26/0.16 0.94 0.41 1.76 34.6
    1007-181 18 41/0.16 1.18 0.41 2 23.3
    1007-161 16 26/0.254 1.49 0.41 2.32 15.1
