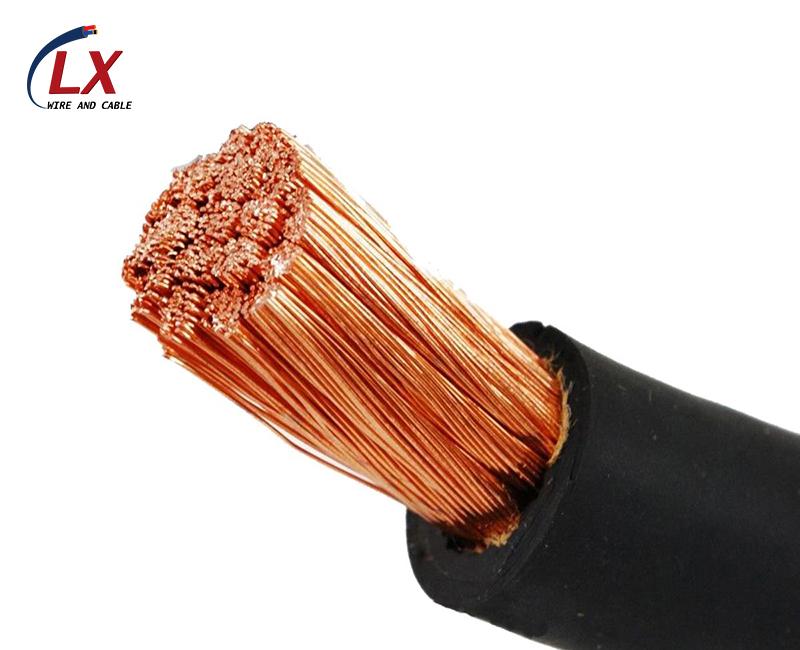

Welding Cable Class K
Date：2017/8/17
| Construction |
6 AWG through 4/0 AWG
fully annealed stranded bare copper per ASTM B172 Class M Ethylene propylene diene monomer (EPDM) Jacket |
||||
| Standard | UL1581 & CSA FT1 vertical flame test | ||||
| Technical Data | Rated Temperature-:-40-105℃ | ||||
| Rated Voltage-600V | |||||
| Features |
Excellent flexibility
to last longer in flex applications Abrasion-resistant Resists oils and solvents Rated -50C for use in cold environments Weather-resistance Ozone-resistant Safety-colored for high visibility Assued longer service lfe, saving money in replacement coss, maintenance cost and downtime |
||||
Details
| Specification | |||||
| Conductor Size | Conduct Construction | Insulation Thickness | O.D. | ||
| (AWG/MCM) | (Num/mm) | Inches | mm | Inches | mm |
| 6 | 660/34 | 0.08 | 2 | 0.364 | 9.25 |
| 4 | 1045/34 | 0.08 | 2 | 0.414 | 10.52 |
| 2 | 1634/34 | 0.08 | 2 | 0.482 | 12.24 |
| 1 | 2090/34 | 0.08 | 2 | 0.522 | 13.26 |
| 1/0 | 2597/34 | 0.09 | 2.3 | 0.582 | 14.78 |
| 2/0 | 3300/34 | 0.09 | 2.3 | 0.637 | 16.18 |
| 3/0 | 4214/34 | 0.09 | 2.3 | 0.67 | 17.02 |
| 4/0 | 5225/34 | 0.09 | 2.3 | 0.747 | 18.97 |
