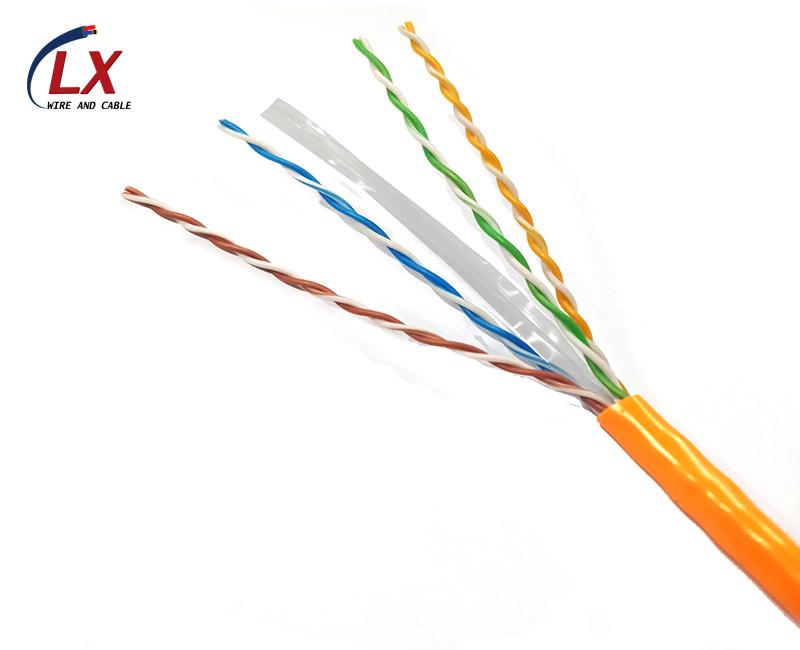

UTP CAT6A Lan Cable
Date：2018/3/22
| Standard and Approval | |||||
| YD/T 1019-2013 TIA/EIA-568C & ISO/IEC 11801, IEC61156-5 | |||||
| Cable Construction | |||||
| Conductor | Solid plain copper conductor | ||||
| AWG | 23AWG | ||||
| ConductorDiameter | 0.57±0.01mm | ||||
| Cross | Yes | ||||
| Insulation | HDPE insulation | ||||
| Insulation color | white/blue,blue;white/green,green;white/orange,orange;white/yellow,yellow | ||||
| AVG. thickness | 0.22mm | ||||
| Min point thickness | 0.18mm | ||||
| Insulation Diameter | 1.02±0.05mm | ||||
| Jacket | PVC outer jacket | ||||
| AVG. thickness | 0.55±0.2mm | ||||
| Min point thickness | 0.43mm | ||||
| Jacket Diameter | 6.5±0.3mm | ||||
| Rip cord | Yes | ||||
Details
| Working voltage | 300/300 volts | ||||
| Temperature Range | -30°C~+70°C | ||||
| Environmental Standard | RoHS | ||||
| Bending Radius | 8 x cable diameter during installation | ||||
| 4 x cable diameter during operation | |||||
| Impedance | 4-100MHZ | 100±15ohm | |||
| 100-600MHZ | 100±32ohm | ||||
| 600-1000MHZ | 100±43ohm | ||||
| Mutural Capacitance | 5.6nF/m Max | ||||
| DC Resistance unbalance of a pair | ≤2% | ||||
| Capacitance Unbalance | ≤160pF/100m | ||||
| Conductor DC Resistance at 20 ℃（Ω/Km） | ≤95 ohms/km | ||||
| Impendance delay screw | ≤25ns/100m | ||||
| Nominal Velocity of propagation | 70% | ||||
