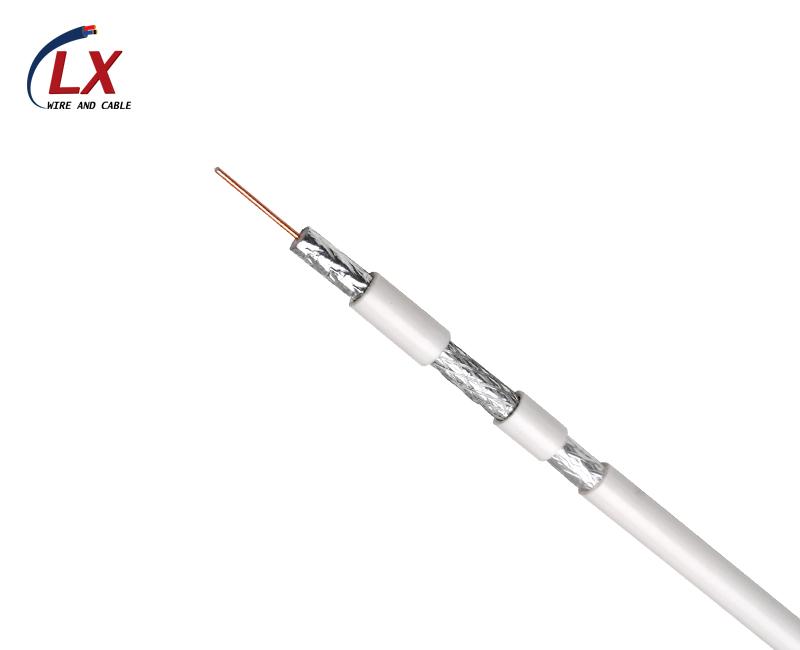

RG6 Dual Shield Coaxial Cable, 18 AWG, 1000ft
Date：2018/3/23
| Cable Construction | |||
| Conductor | Solid Bare Copper/copper clad steel | ||
| Conductor Size | 18 AWG (1.02mm) | ||
| Insulation | Foam Polyethylene Dielectric | ||
| Shield | 100% coverage Bonded Aluminum Foil or Aluminum Foil | ||
| Braid | 10~95% Copper/copper clad aluminum/Al-Mg wire | ||
| Braid structure | 0.12mmx(32/48/64/80/96/112/128/144) | ||
| Jacket | PVC/PE | ||
| Overall Cable Diameter | 6.91±0.2mm | ||
Details
| Operating Temperature Range: | -20°C To +60°C | ||
| Min. Bend Radius/Minor Axis: | 69.85mm | ||
| Nom. Characteristic Impedance: | 75±3ohm | ||
| Nom. Inductance: | 0.0296μH/m | ||
| Nom. Capacitance Conductor to Shield: | 50pF/m | ||
| Nominal Velocity of Propagation: | 85% | ||
| Nominal Delay: | 0.366ns/ft | ||
| Max. Operating Voltage | 300V | ||
| Structure Return Loss: | 20dB | ||
