AWM 2919
Date：2018/3/21
| Construction |

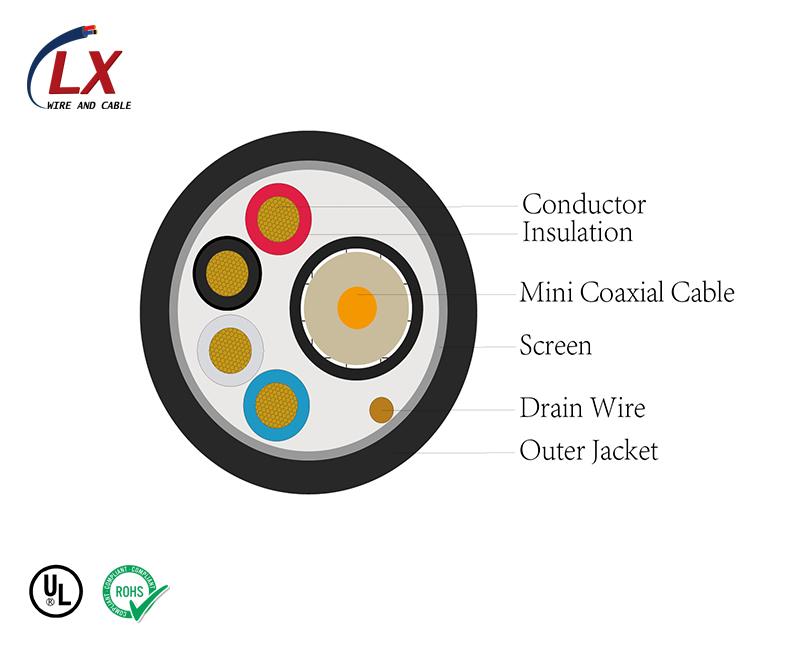

Stranded, tinned or bare copper conductor -First type core: mini-coaxial cable with PE insulation -Second type core: PVC insulation Tinned or bare stranded copper drain wire Tinned or bare copper wire braid shield PVC jacket |
||||||
| Standard |
UL Subject 758, UL1581 & CSA C22.2 No.210.2 Passes UL VW-1 & CSA FT1 vertical flame test |
||||||
| Technical Data | Rated Temperature-80℃ | ||||||
| Rated Voltage-30V | |||||||
Details
| Part No. | Core Numbers | Conductor Size | Conduct Construction | Insulation Thickness | Insulation Dia. | Spiral Structure | Covering Dia. | Overall Shielding Material | Overall Shield Coverage | O.D. | Maximum Resistance at 20℃ |
| Num | (AWG/MCM) | (Num/mm) | (mm) | (mm) | (Num/mm) | (mm) | (mm) | % | (Ω/km) | ||
| 2919-201 | 1CXUL1354 4CXUL1061 | 28 24 | 7/0.127 7/0.20 | 0.61 0.26 | 1.60 1.12 | 42/0.12 | 2.55 | AL | 0.9 | 7.9 | 223 88.9 |
| 2919-202 | 3CXUL1354 4CXUL1061 | 28 24 | 7/0.127 7/0.20 | 0.61 0.26 | 1.60 1.12 | 42/0.12 | 2.55 | AL | 0.9 | 8 | 223 88.9 |
| 2919-203 | 3CXUL1354 5CXUL1061 | 28 24 | 7/0.127 7/0.20 | 0.61 0.26 | 1.60 1.12 | 42/0.12 | 2.55 | AL | 0.87 | 8 | 223 88.9 |
| 2919-204 | 3CXUL1354 6CXUL1061 | 28 26 | 7/0.127 7/0.16 | 0.61 0.26 | 1.60 1.00 | 42/0.12 | 2.55 | PAPER | 0.8 | 7.9 | 223 139 |
| 2919-205 | 3CXUL1354 6CXUL1061 | 28 24 | 7/0.127 7/0.20 | 0.61 0.26 | 1.60 1.12 | 42/0.12 | 2.55 | AL | 0.85 | 8 | 223 88.9 |
| 2919-206 | 3CXUL1354 7CXUL1061 | 30 28 | 7/0.10 7/0.127 | 0.50 0.26 | 1.30 0.90 | 39/0.1 | 2.55 | AL | 0.895 | 7.2 | 354 223 |
| 2919-207 | 3CXUL1354 7CXUL1061 | 28 24 | 7/0.127 7/0.20 | 0.61 0.26 | 1.60 1.12 | 42/0.12 | 2.55 | AL | 0.85 | 8 | 223 88.9 |
